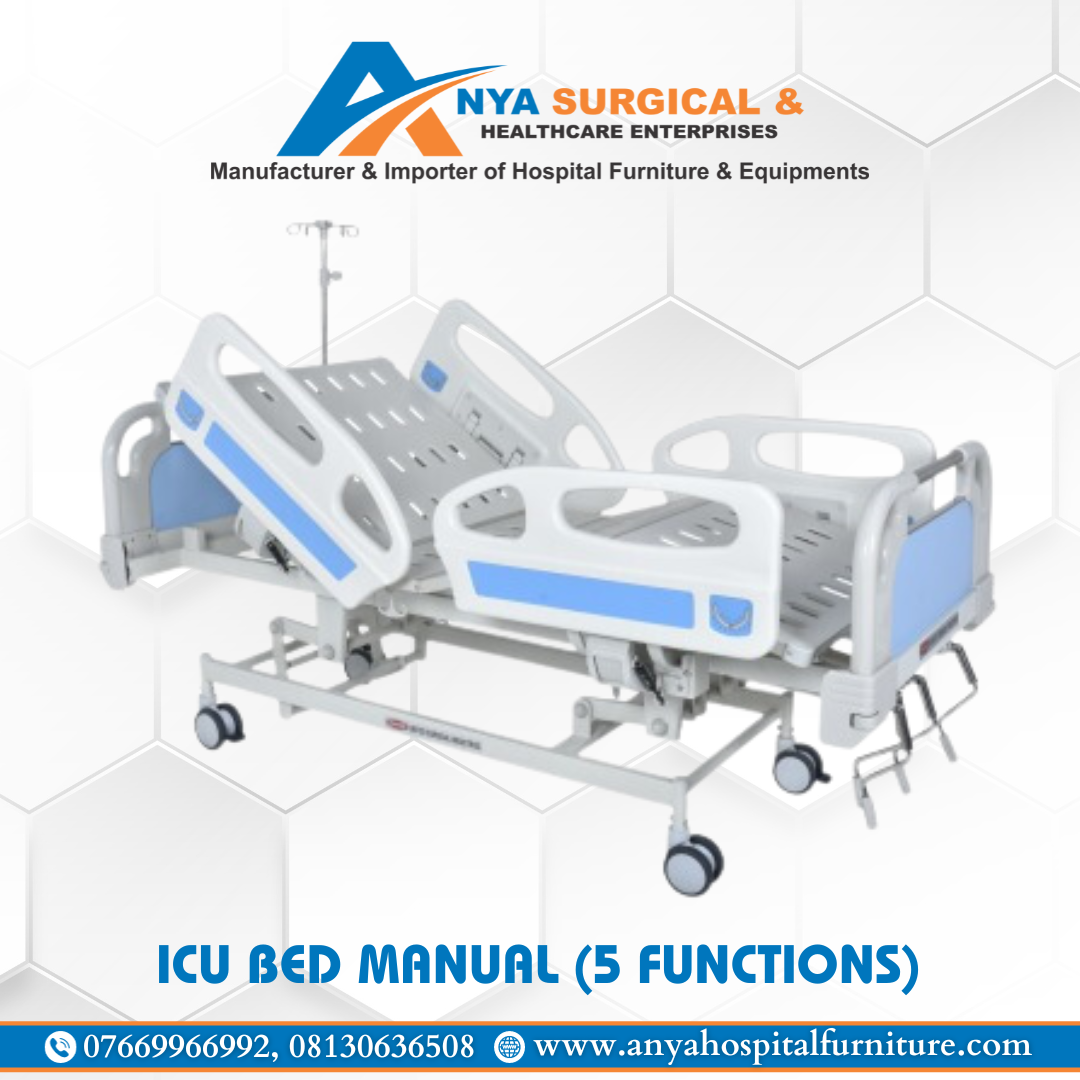

ICU Bed Manual (5 Functions)

Description

• Heavy PP Head and Foot Panels with metal inserts along with lock and corner buffer.
• PP Moulded Four Pieces individual Side Rails With Inbuilt Bed Angle Indicator (Outer side as well as Inner side).
• Framework made-up of M.S. Tubes.
• 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
• Bed Mounted on 125mm (5”) Diagonal Locking Castors.
• S. Telescopic I.V. Rod with 4 Hook’s and Provision at 4 Locations.
• Urine Bag Holder on Both Sides.
• Calf Elevation Manually Operated.
• Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Backrest, Kneerest, Hi-Low, Trendelenburg /Reverse Trendelenburg.
• Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.):
• Overall Size: 2160L x 1070W x 610 – 750H mm.
• Angle of Back Section: 75°
• Angle of Knee Section: 30°
• Angle of Trendelenburg / Reverse Trendelenburg: 5° / 6°

Optional Accessories:
• 4 Section Mattress

ICU Bed Manual (5 Function)

Description

• PP Head and Foot Panels with metal inserts along with lock and corner buffer.
• PP Moulded Four Pieces individual Side Rails With Inbuilt Bed Angle Indicator (Outer side as well as Inner side).
• Framework made-up of M.S. Tubes.
• 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
• Bed Mounted on 125mm (5”) Diagonal Locking Castors.
• S. Telescopic I.V. Rod with 4 Hook’s and Provision at 4 Locations.
• Urine Bag Holder on Both Sides.
• Calf Elevation Manually Operated.
• Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Backrest, Kneerest, Hi-Low, Trendelenburg /Reverse Trendelenburg.
• Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.):
• Overall Size: 2160L x 1070W x 610 – 750H mm.
• Angle of Back Section: 75°
• Angle of Knee Section: 30°
• Angle of Trendelenburg / Reverse Trendelenburg: 5° / 6°

Optional Accessories:
• 4 Section Mattress

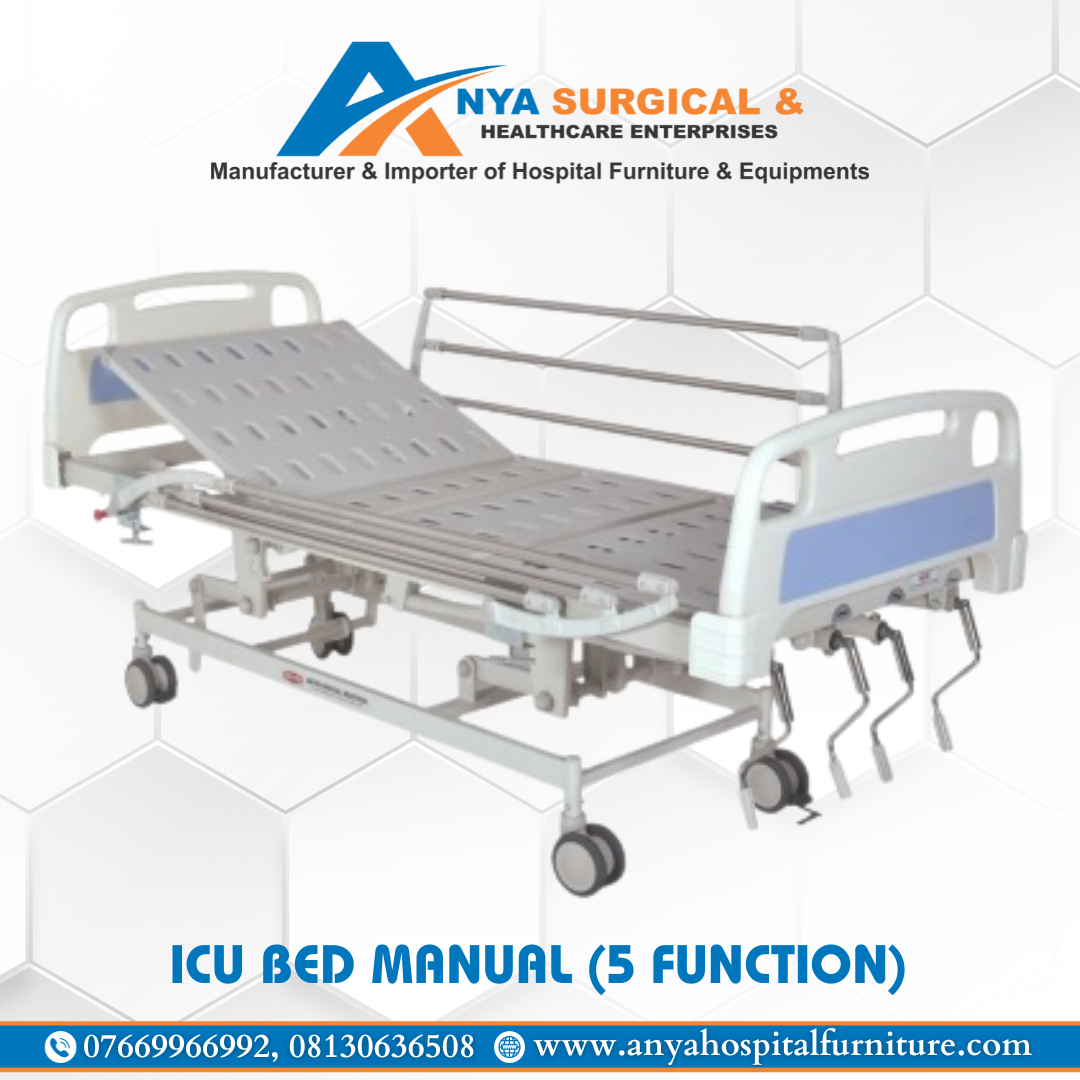

ICU Bed Manual (5 Function)

Description

• Heavy PP Head and Foot Panels with metal inserts along with lock and corner buffer.
• Two Pieces Individual Detachable Collapsible Safety Side-Rails, Stainless Steel Pipe.
• Framework made-up of M.S. Tubes.
• 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
• Bed Mounted on 125mm (5”) Diagonal Locking Castors.
• S. Telescopic I.V. Rod with 4 Hook’s and Provision at 4 Locations.
• Urine Bag Holder on Both Sides.
• Calf Elevation Manually Operated.
• Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Backrest, Kneerest, Hi-Low, Trendelenburg /Reverse Trendelenburg.
• Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.):
• Size: 2160L x 980W x 630 – 830 H mm.
• Angle of Back Section: 75°
• Angle of Knee Section: 30°
• Angle of Trendelenburg / Reverse Trendelenburg: 7° / 6°

Optional Accessories:
• 4 Section Mattress

ICU Bed Manual (5 Function)

Description

• PP Head and Foot Panels with metal inserts along with lock and corner buffer.
• Two Pieces Individual Detachable Collapsible Safety Side-Rails, Stainless Steel Pipe.
• Framework made-up of M.S. Tubes.
• 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
• Bed Mounted on 125mm (5”) Diagonal Locking Castors.
• S. Telescopic I.V. Rod with 4 Hook’s and Provision at 4 Locations.
• Urine Bag Holder on Both Sides.
• Calf Elevation Manually Operated.
• Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Backrest, Kneerest, Hi-Low, Trendelenburg /Reverse Trendelenburg.
• Finish: Pre-treated & Epoxy Powder Coated.

Dimensions (Approx.):
• Overall Size: 2160L x 980W x 630 – 830H mm.
• Angle of Back Section: 75°
• Angle of Knee Section: 30°
• Angle of Trendelenburg / Reverse Trendelenburg: 7° / 6°

Optional Accessories:
• 4 Section Mattress

4 Function ICU Bed

Description

• Four Pieces individual side rails, ABS Moulded.
• ABS Moulded Head and Foot panel with locking and corner buffer.
• Frame work made of Rectangular M.S. Tube.
• 4 section top made up of Oval perforated CRCA MS Sheet.
• Bed Mounted on 5" Dia Castor. 2 with brakes.
• Holder for Urine bag.
• S.S. Telescopic IV Rod with 4 Locations.
• Overall Approx Size: 2090L x 910W x 460-700H MM.
• Finish: Pretreated & Epoxy Powder Coated.

Positions obtained by Smooth Crank System with foldable handles:
• Hi-Low.
• Backrest elevation.
• Kneerest elevation.
• Trendlenburg / Reverse trendlenburg.

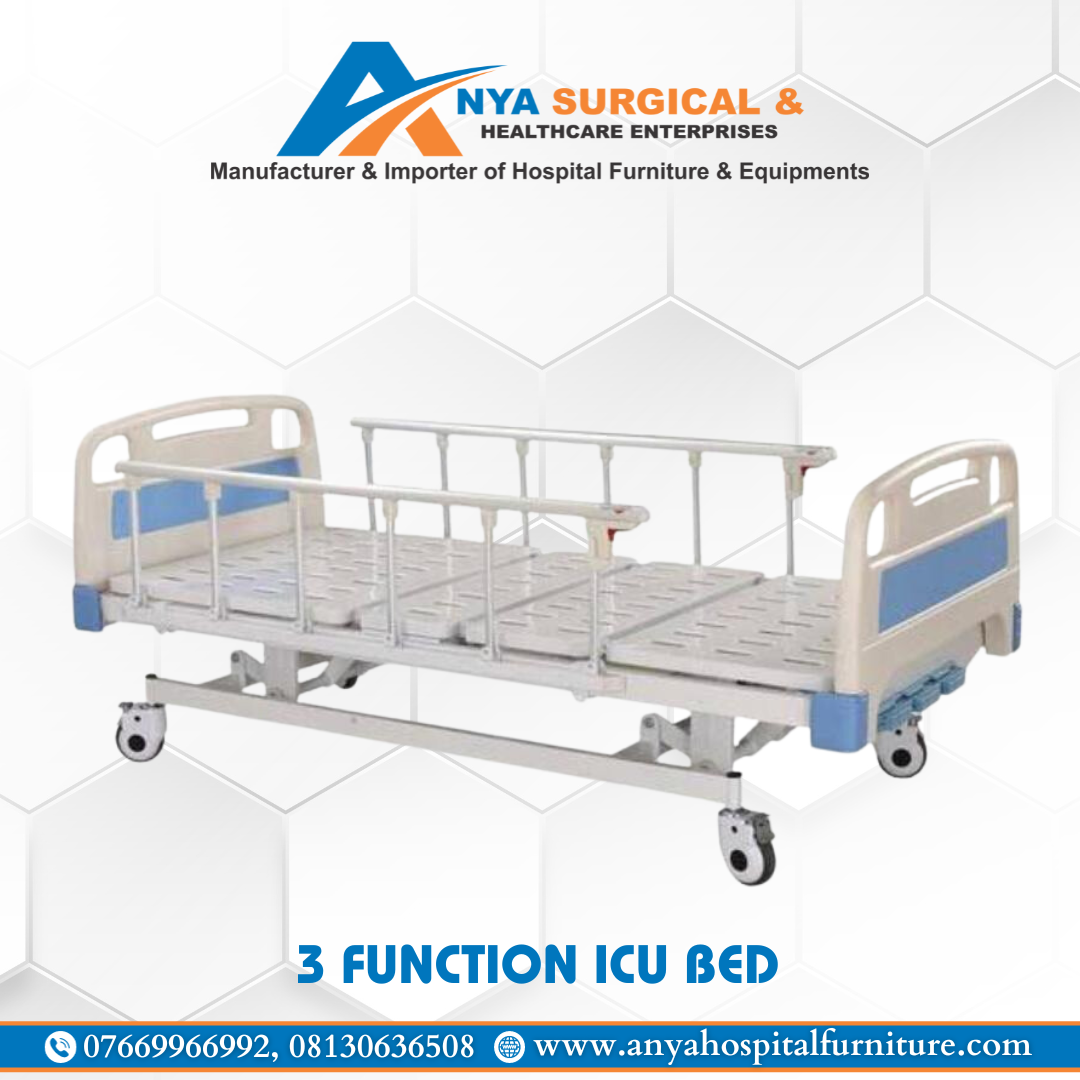

3 Function ICU Bed

Description

• Four Pieces individual side rails, ABS Moulded.
• ABS Moulded Head and Foot panel with locking and corner buffer.
• Frame work made of Rectangular M.S. Tube.
• 4 section top made up of Oval perforated CRCA MS Sheet.
• Bed Mounted on 5" Dia Castor. 2 with brakes.
• Holder for Urine bag.
• S.S. Telescopic IV Rod with 4 Locations.
• Overall Approx Size: 2090L x 910W x 460-700H MM.
• Finish: Pretreated & Epoxy Powder Coated.

Positions obtained by Smooth Crank System with foldable handles:
• Hi-Low.
• Backrest elevation.
• Kneerest elevation.
• Trendlenburg / Reverse trendlenburg.

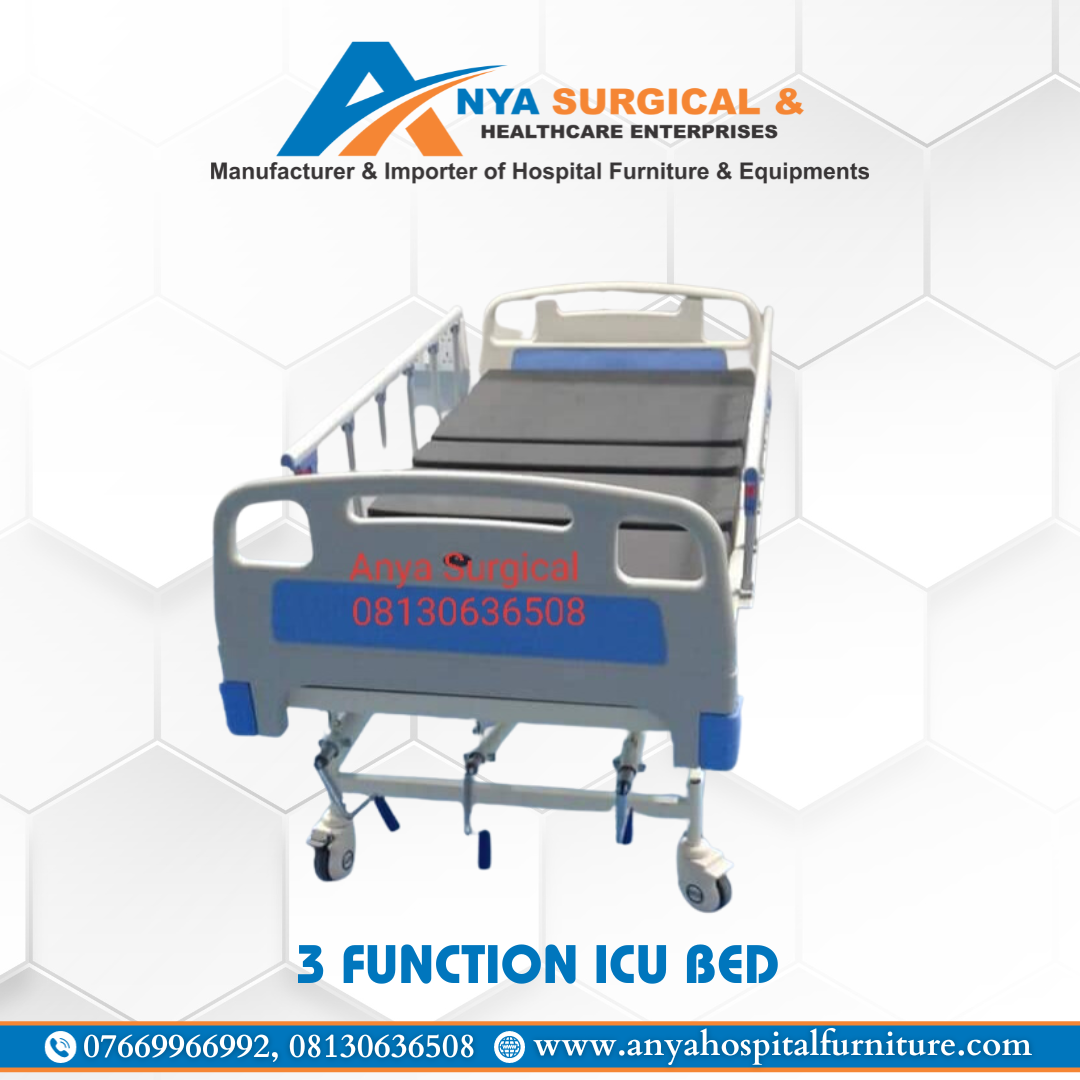

3 Function Icu Bed

Description

• Four Pieces individual side rails, ABS Moulded.
• ABS Moulded Head and Foot panel with locking and corner buffer.
• Frame work made of Rectangular M.S. Tube.
• 4 section top made up of Oval perforated CRCA MS Sheet.
• Bed Mounted on 5" Dia Castor. 2 with brakes.
• Holder for Urine bag.
• S.S. Telescopic IV Rod with 4 Locations.
• Overall Approx Size: 2090L x 910W x 460-700H MM.
• Finish: Pretreated & Epoxy Powder Coated.

Positions obtained by Smooth Crank System with foldable handles:
• Hi-Low.
• Backrest elevation.
• Kneerest elevation.
• Trendlenburg / Reverse trendlenburg.

3 function icu bed

Description

• Four Pieces individual side rails, ABS Moulded.
• ABS Moulded Head and Foot panel with locking and corner buffer.
• Frame work made of Rectangular M.S. Tube.
• 4 section top made up of Oval perforated CRCA MS Sheet.
• Bed Mounted on 5" Dia Castor. 2 with brakes.
• Holder for Urine bag.
• S.S. Telescopic IV Rod with 4 Locations.
• Overall Approx Size: 2090L x 910W x 460-700H MM.
• Finish: Pretreated & Epoxy Powder Coated.

Positions obtained by Smooth Crank System with foldable handles:
• Hi-Low.
• Backrest elevation.
• Kneerest elevation.
• Trendlenburg / Reverse trendlenburg.
