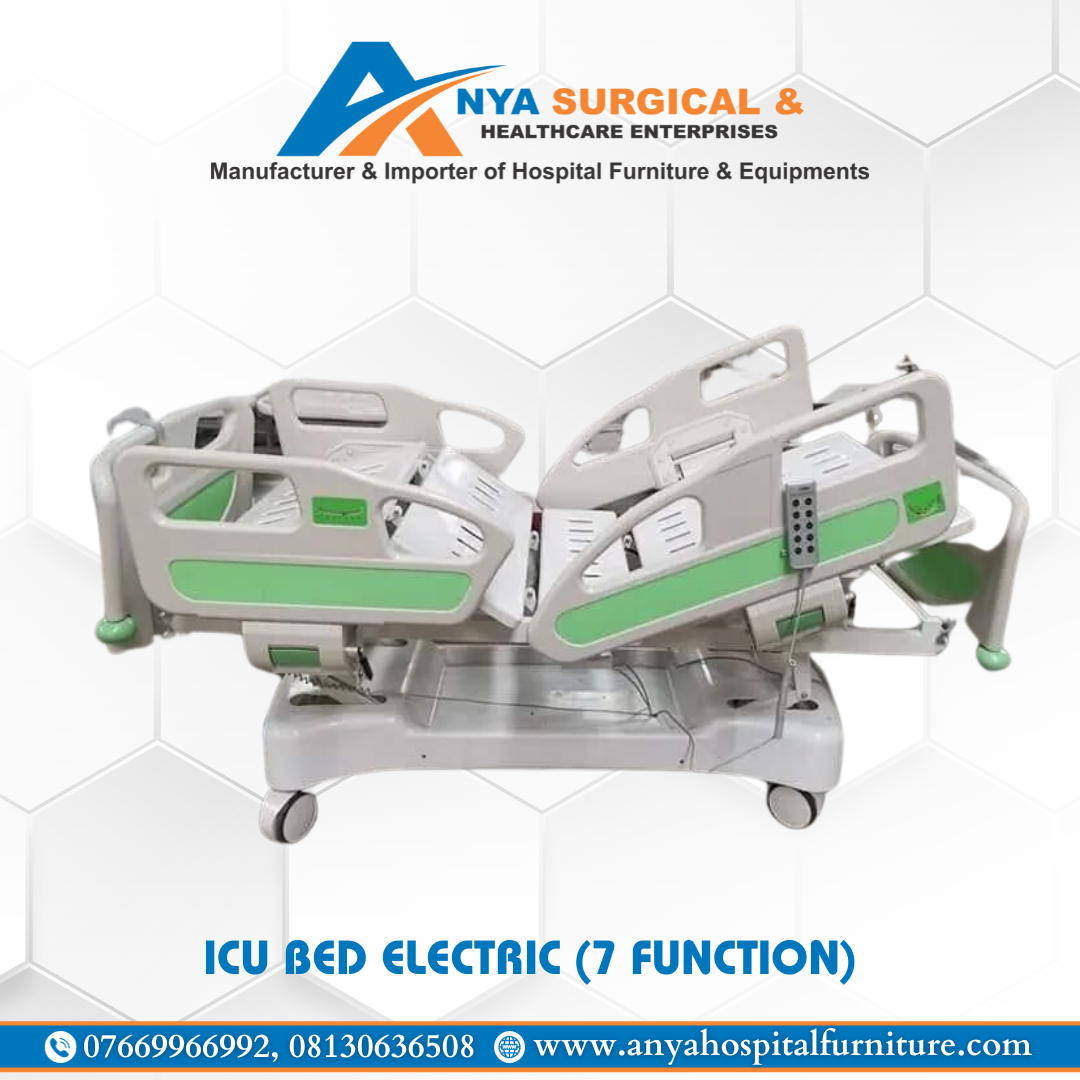

ICU Bed Electric (7 Function)
Description
- Advance Liner actuator system with IP54 Liquid splash protection (04 pcs. Motor, 01 pcs. Control box, 01 pcs. Handset, 01 pcs. Attendant Control Panel (ACP), 01 pcs. Battery]
- PP Head and Foot Panels along with lock and corner buffer.
- PP Moulded Four Pieces Individual Side Rails With Inbuilt Bed Angle Indicator (Outer side as well as Inner side).
- Framework made-up of M.S. Tubes.
- 4 Section Platform Top made-up of Oval Perforated CRCA M.S. Sheet.
- Bed Mounted on 125mm (5”) Central Locking Twin Wheel Castors along with Directional Lock.
- Dust Protective ABS Cover for wheels.
- S. Telescopic I.V. Rod with 4 Hook’s and Provision at 4 Locations.
- Urine Bag Holder on Both Sides.
- One Touch button for Chair Position, Emergency Head Down, Auto CPR (For Zero Position).
- Dual Side Manually Operated CPR (For Backrest).
- Calf Elevation Manually Operated.
- Battery Backup.
- Positions Obtained/Function’s by Patient Hand Remote: Backrest, Knee Rest, Trendelenburg & Reverse Trendelenburg, Hi – Low, Electric CPR, LED Night Lamp.
- Positions Obtained/Function’s on Attendant Control Panel (ACP): Backrest, Kneerest, Trendelenburg & Reverse Trendelenburg, Hi-Low, Auto-Contour, Electric CPR, LED Night Lamp, Locking of Individual Position’s and Battery Indicator.
- Finish: Pre-treated & Epoxy Powder Coated.
Dimensions (Approx.):
- Overall Size: 2160L x 1050W x 450 – 750H mm.
- Angle of Back Section: 70°
- Angle of Knee Section: 30°
- Angle of Trendelenburg / Reverse Trendelenburg: 12° / 12°
Optional Accessories:
- 4 Section Mattress
- Single Section Premium Quality Pressure Ease Mattresses
- X-ray Translucent Top for Backrest with X-ray Cassette Holder Beneath Backrest (USI-5008).
- Removable ABS 4 Section Platform Tops.
- Linen Holder at Foot End.
- Bed Extension.
- Oxygen Cylinder Holder
- Embedded Controls on Side Railings
- Quality Standard Certification:
All the certificates as “General Requirement for all items” under “Product & Manufacturer Quality Standards”.
