suction apparatus

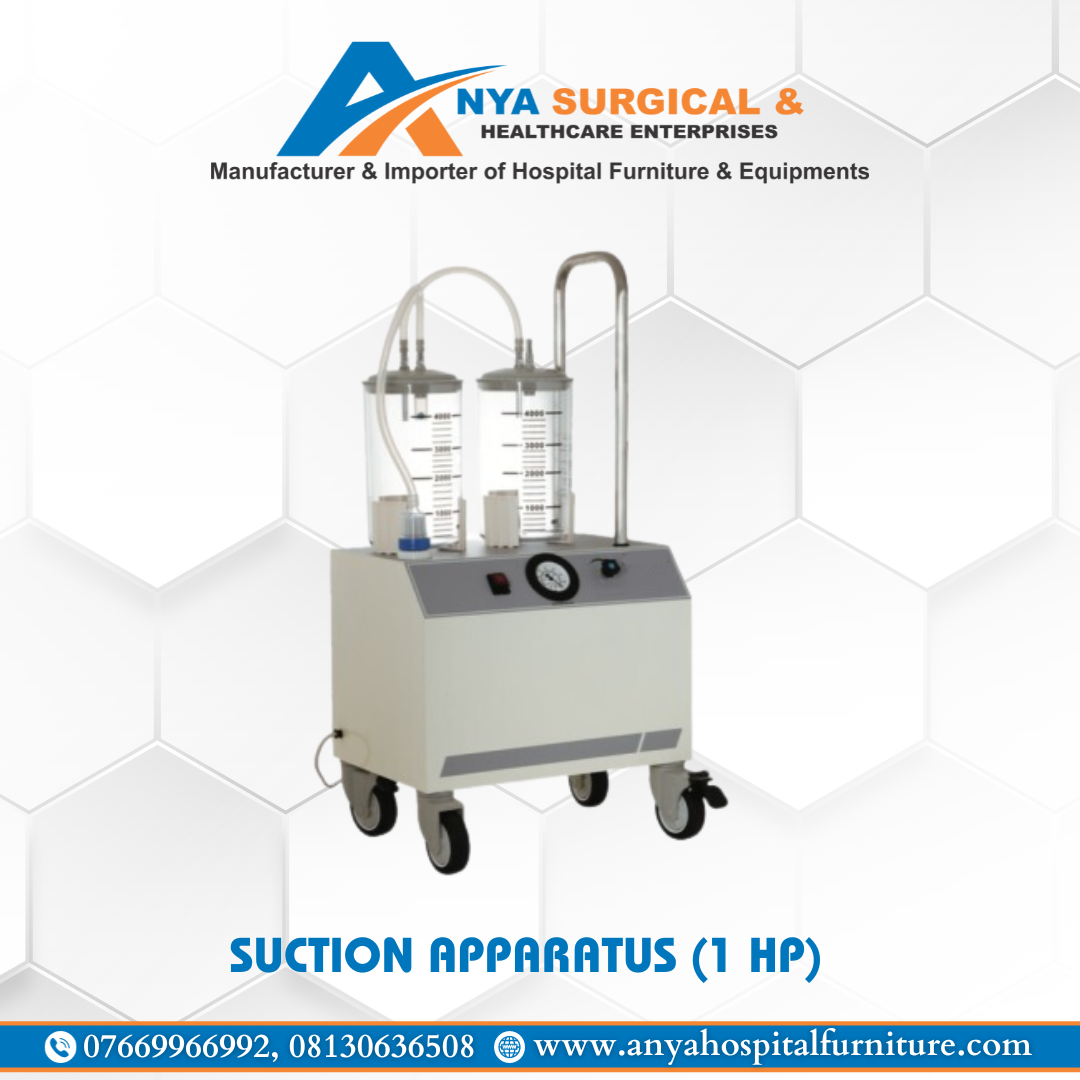

SUCTION APPARATUS (1 HP)

Description

• Powder coated M.S. chassis with S.S. Top
• Noise level of suction apparatus is 50 Db +/-03 DB
• Electric requirement : 220 – 230V, 50Hz, 1Phase
• Ideal for MTP / medical / surgical procedures
• Rotary Vane Type Vacuum Pump with-740 +/-10mm Hg
• Free air displacement 12-125 ltrs / min
• Heavy duty castors
• 820 Watt, 1 HP Electric Motor
• 63mm Vacuum Gauge
• Non collapsible Silicon tubing
• 2 x 4.0 Ltrs. Polycarbonates jars with over flow safety
• Bacteria filter fitted on top

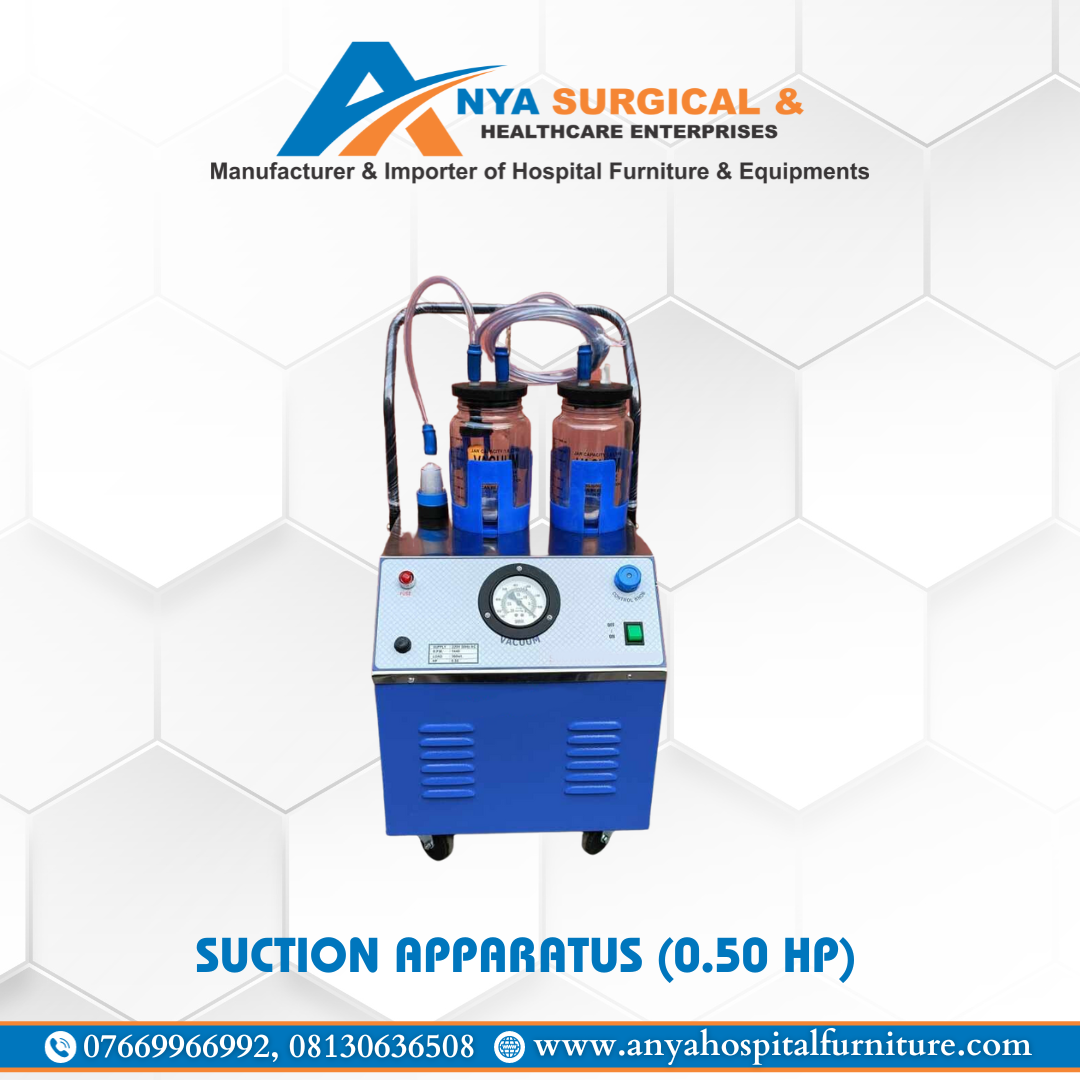

SUCTION APPARATUS (0.50 HP)

Description

• Powder coated M.S. chassis with S.S. Top
• Noise level of suction apparatus is 50 Db +/-03 DB
• Electric requirement : 220 – 230V, 50Hz, 1Phase
• Ideal for MTP / medical / surgical procedures
• Rotary Vane Type Vacuum Pump with-740 +/-10mm Hg
• Free air displacement 35-40 ltrs / min
• Heavy duty castors
• 370 Watt, 1440RPM, 0.50.HP Electric Motor
• 75mm Vacuum Gauge
• Non collapsible Silicon tubing
• 2 x 2.0 Ltrs. Polycarbonates jars with over flow safety
• Bacteria filter fitted on top

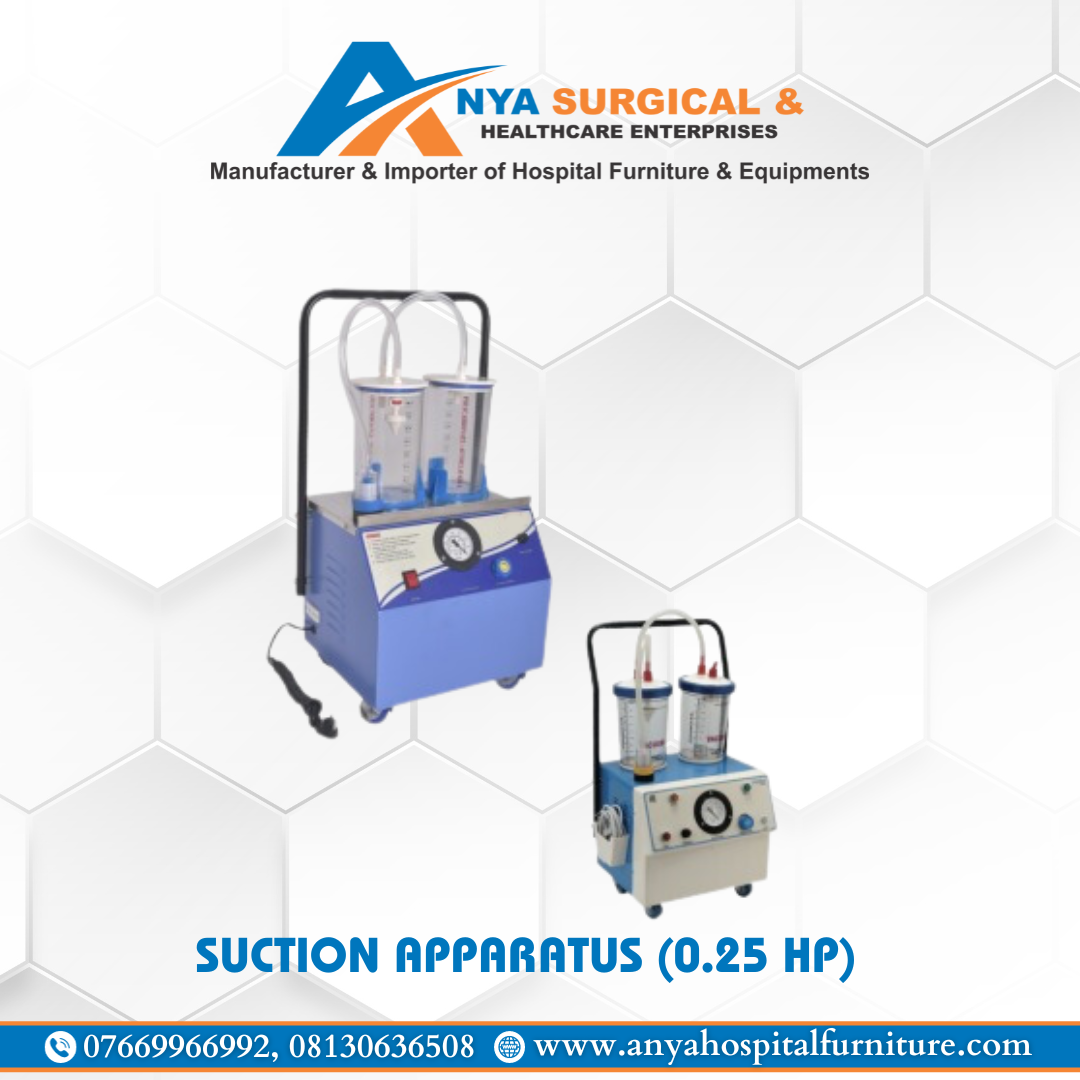

SUCTION APPARATUS (0.25 HP)

Description

• Ward care Suction Unit
• Powder Coated MS chassis
• Noise level of suction apparatus is 50 Db ±03 DB
• Electric requirement : 220 ~230VAC , 50Hz, 1 Phase
• Ideal for medical & Surgical procedures
• Rotary Vane Vacuum Pump
• With -710+/. 10mm Hg
• Free air displacement 30 ~ 35 Ltrs / min
• Heavy duty castors
• 180watt, 1440 RPM, 0.25 H.P. Electric Motor
• 63mm Vacuum Gauge
• Non collapsible PVC tubing
• 2 x 1.5 Ltrs. Polycarbonate jars with overflow safety
• Bacterial filter fitted on top

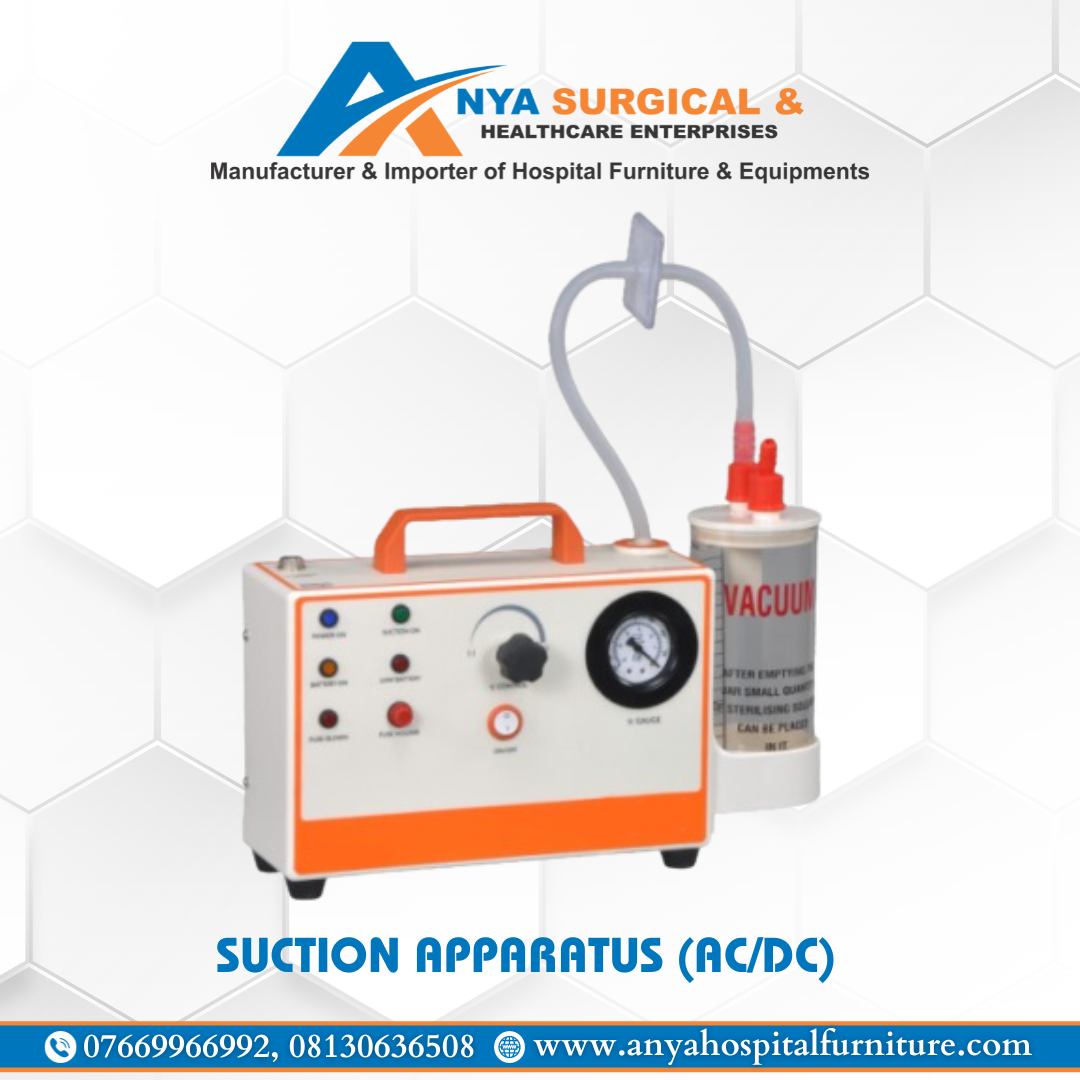

SUCTION APPARATUS (AC/DC)

Description

• Light Weight 4.3 kg
• Capacity 600mmHg+10Hg
• Vacuum Free air displacement: 15-18 ltrs/min.
• Power operated on 220 VAC and 12V battery.
• Autoclavable 600ml polycarbonate collection jar.
• Overflow protection: float system provided in safety jar
• Filter: autoclavable bacterial filter
• Pump type: oil free rocker piston pump.
• Battery Backup: 90 minutes on full charge.

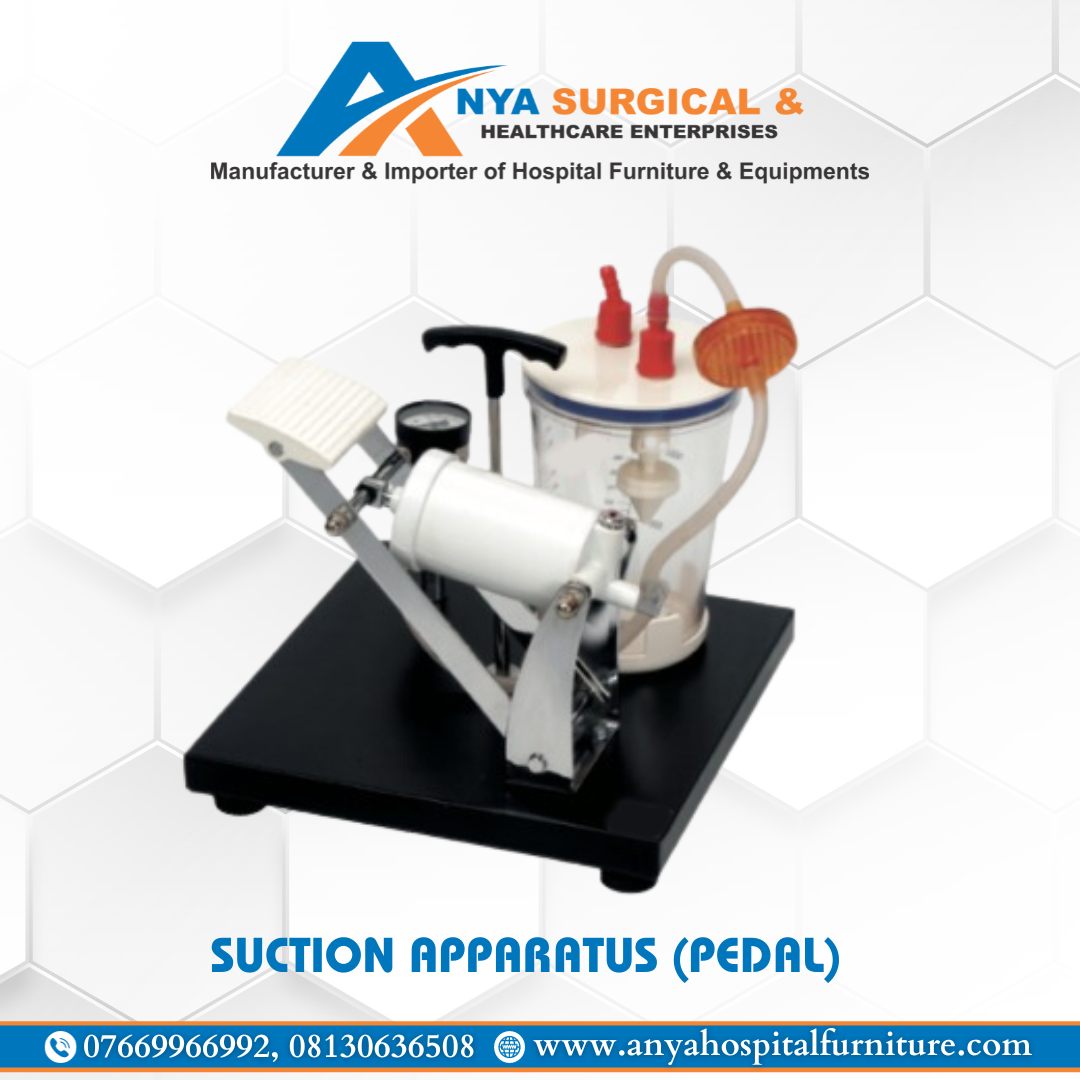

SUCTION APPARATUS (Pedal)

Description

Pedal suction apparatus mainly used in hospitals of levels for suctions of blood, phlegm and other thick liquid.

HAND SUCTION

Description

• 250ml Jar Capacity
• Hand driven

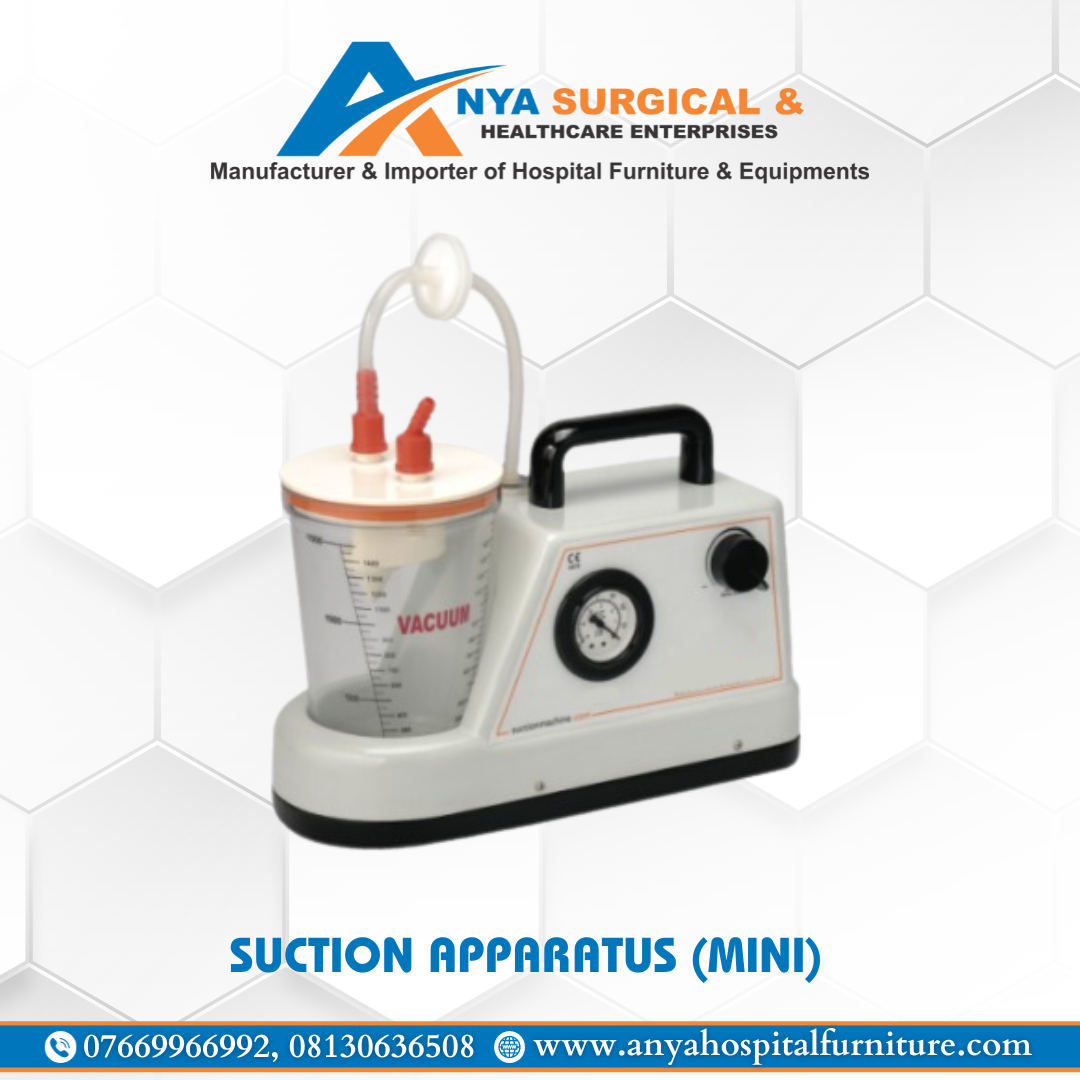

SUCTION APPARATUS (Mini)

Description

• Capacity 600mm hg+/- 10 mm HG at 15-18 LPM.
• Power operated on 220VAC, 50Hz, 90W.
• 0-760 mm HG of vaccum Gauge.
• Autoclavable 1000ml Polycarbonate jars with overflow safety.
• Float system provided in safety jar.
• Bacterial filter fitted on top.
• Oil free rocker piston pump.
• Complete ABS Body.
