emergency recovery trolley

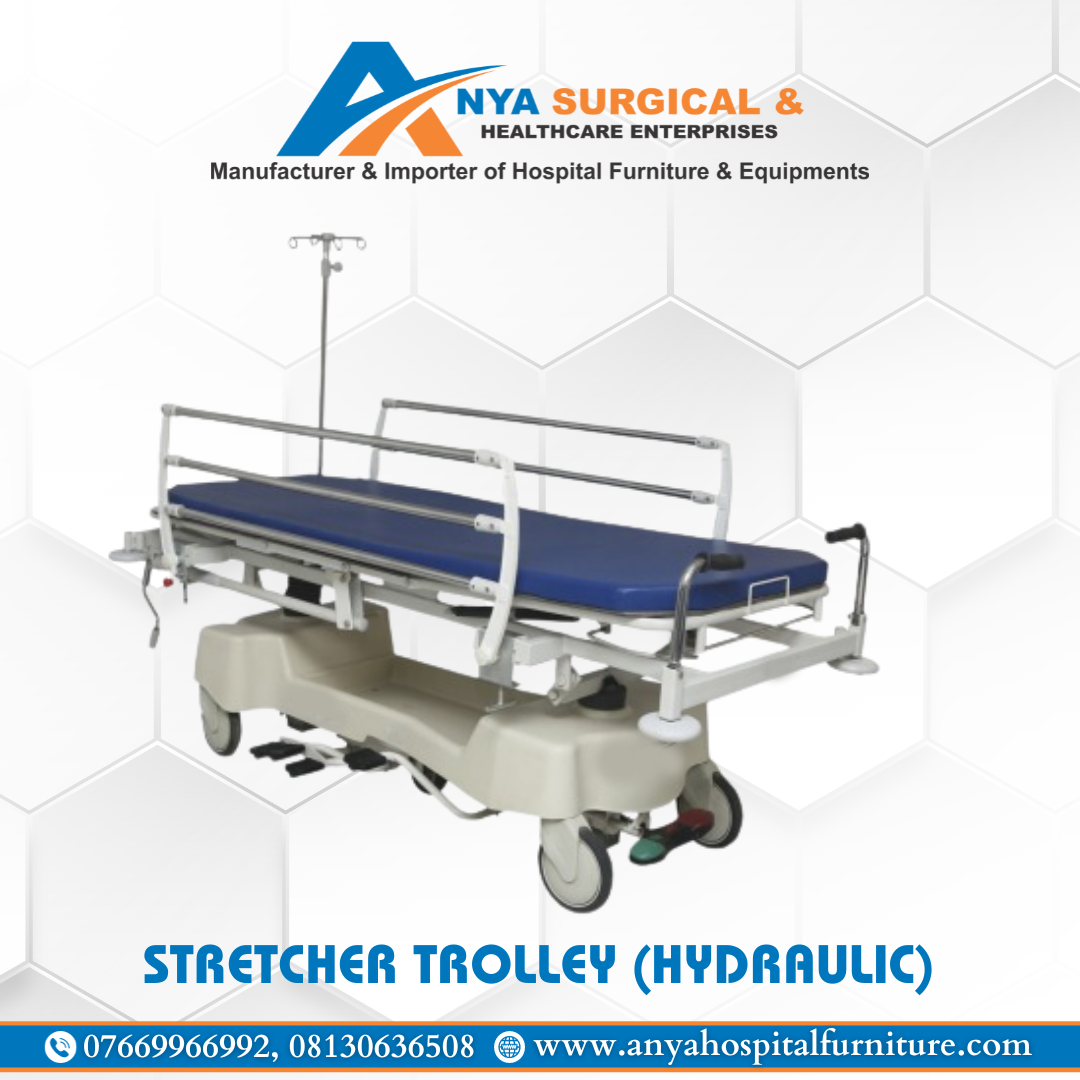

Stretcher Trolley (Hydraulic)

Description

• Foot operated Hydraulic System mechanism by stepping on the pedal located on both sides of stretcher for Hi – Low, Trendelenburg & Reverse Trendelenburg adjustments.
• Smooth Pneumatic mechanism to raise Backrest.
• Kneerest position Obtained by Smooth Crank System with S.S. Foldable Handle at foot end.
• Four section X-Ray permeable Platform Top along with Suitable Mattress of 100 mm (4”).
• Two Pieces Individual Detachable Collapsible Safety Side-Rails with safety lock, Stainless Steel Pipe.
• Provided with Push/Driving Handle on the head end for smoothing the way of movement conveniently and can be stored while not in use.
• Tubular M.S. Framework mounted on 200 mm (8”) Central Locking Castors .
• Bottom Cover with Storage bin.
• Corner buffer provided at 4 locations.
• Urine bag holder provided at both sides.
• S.S. Telescopic I.V. Rod with 4 Hook’s (USI-5002) & provision on all 4 sides

Dimensions (Approx.) :
• Overall Size: 2040L x 810W x 600 – 920H mm
• Stretcher Top Size: 1930L x 735W
• Angle of Back Section: 90°
• Angle of Leg Section: 25°
• Angle of Trendelenburg / Reverse Trendelenburg: 12°/ 10°

Optional Accessories:
• Fifth Wheel
• Oxygen Cylinder Holder
• Foot end Shelf

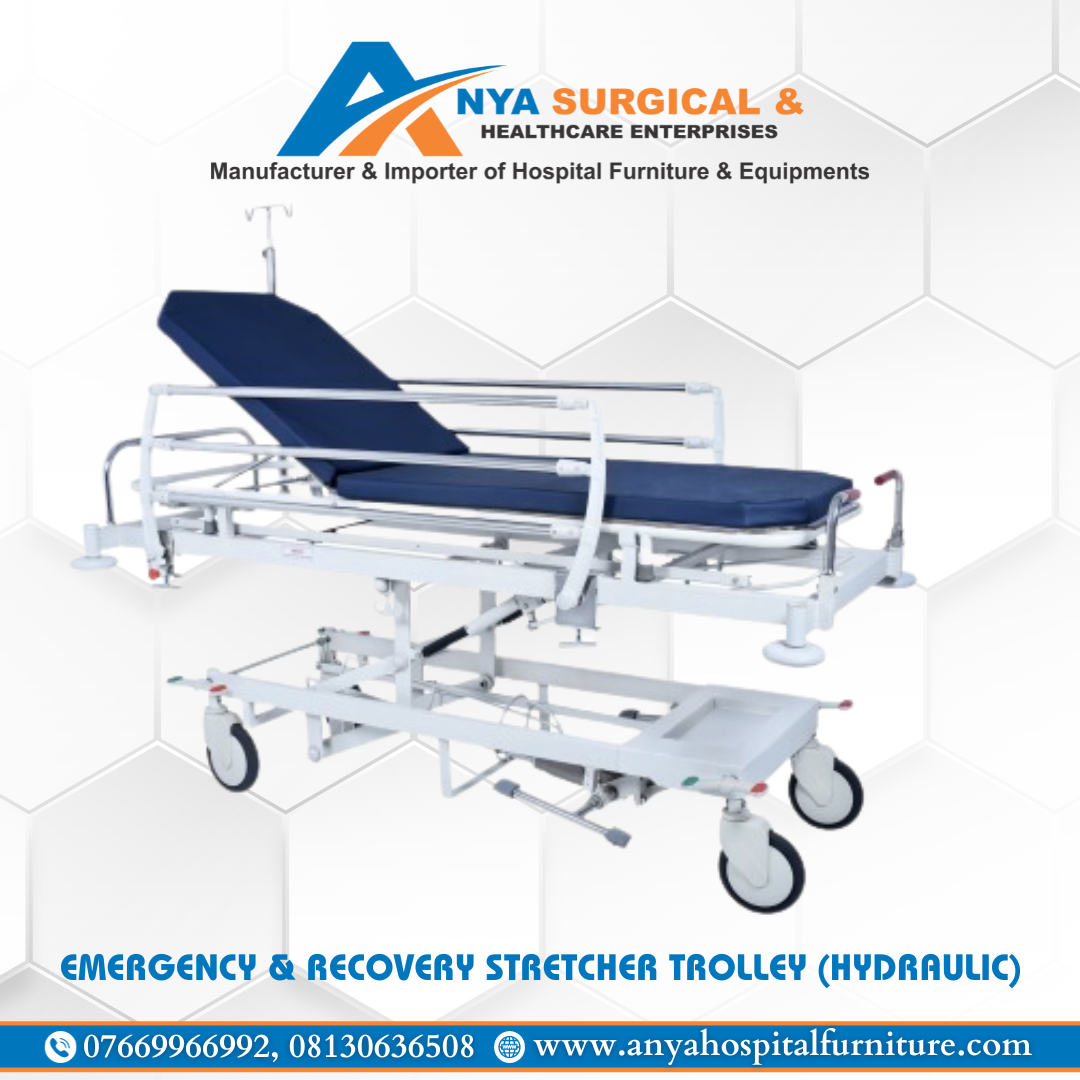

Emergency & Recovery Stretcher Trolley (Hydraulic)

Description

• Heavy duty non- staining precision ball bearing swivel casters of 8” for easy maneuverability.
• Casters- Foot operated and centrally actuated lever at head/foot ends with multistage switching for total lock, direction look or free mobility
• Gas spring assisted seamless adjustment of Trendelenburg and reverse Trendelenburg positions.
• Backrest Operated manually on ratchet system.
• Convenient height adjustments on high quality hydraulic pump with foot operated levers on both sides of the trolley.
• Two section mattress platform made of X-Ray permeable pre-laminated board, supported on strong M.S. Tubular frame with removable stretcher.
• Provided with Oxygen Cylinder Cage, Sliding X-ray Cassette holder, Collapsible safety side railings, SS telescopic I.V. Rod with 4 hooks, Utility Tray and Suitable Mattress of 50 mm (2”).
• Finish: Pretreated and Epoxy powder coated.

Dimensions (Approx.):
• Overall Size: 2030L x 1020W x 600-880H mm.
• Stretcher top Size: 1930L x 660W mm
• Angle of Back Section: 80°
• Angle of Trendelenburg / Reverse Trendelenburg: 17° / 15°

Optional Accessories:
• Fifth Wheel
• Foot end Shelf

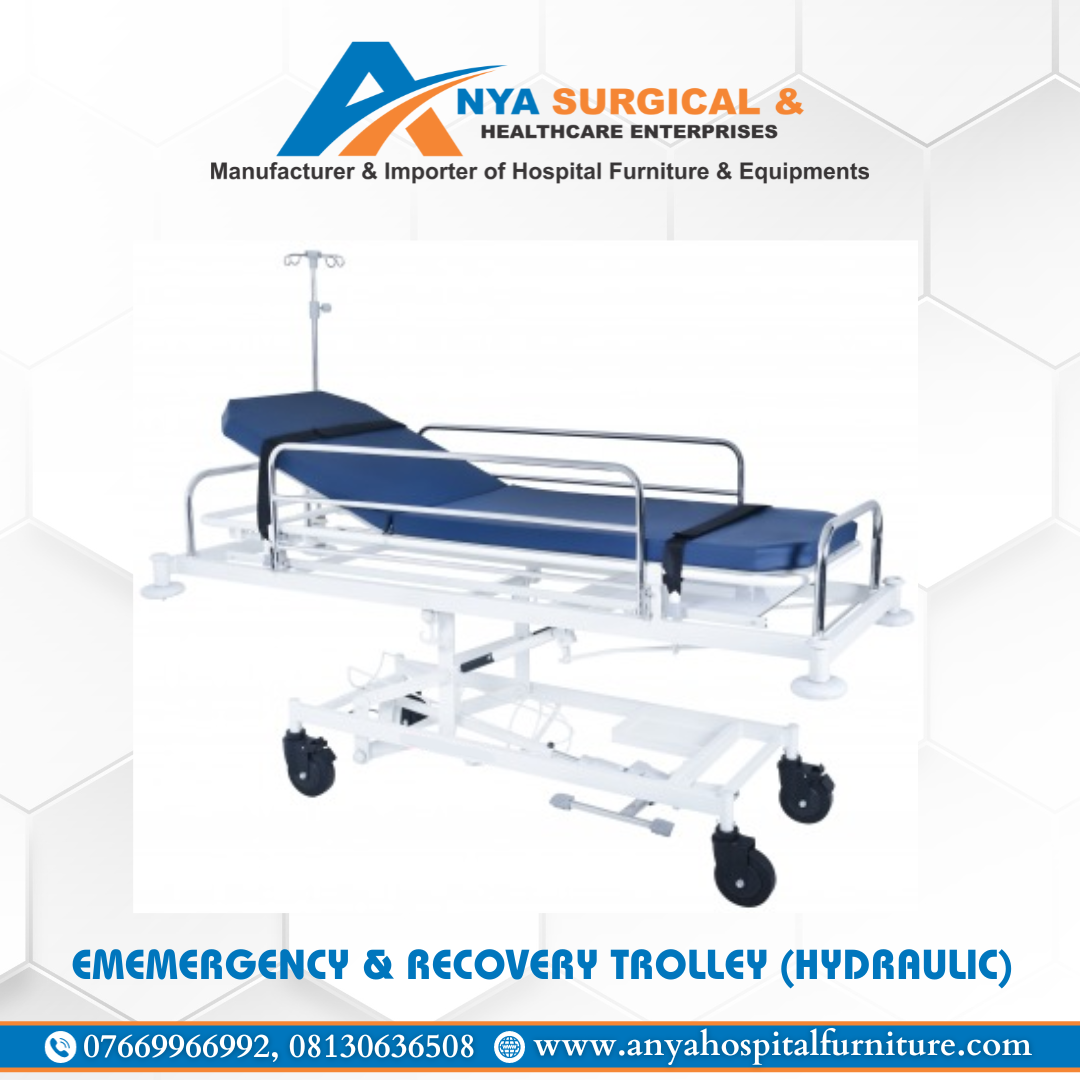

Emergency & Recovery Trolley (Hydraulic)

Description

• Tubular M.S. Framework, foot operated hydraulic pump for height adjustment.
• Smooth Pneumatic mechanism to obtain Trendelenburg and Reverse Trendelenburg positions.
• Removable two section X-Ray permeable top with Head Raise on Ratchet Mechanism.
• Trolley Mounted on 125 mm (5”) diagonal locking castors.
• Provided with Oxygen Cylinder Cage, Sliding X-ray Cassette holder, SS drop down safety side railings, SS telescopic I.V. Rod with 4 hooks, Utility Tray and Suitable Mattress of 50 mm (2”).
• Finish: Pretreated and Epoxy powder coated.

Dimensions (Approx.):
• Overall Size: 2100L x 670W x 690 – 950H mm.
• Stretcher top Size: 1940L x 605W mm
• Angle of Back Section: 70°
• Angle of Trendelenburg / Reverse Trendelenburg: 9°/ 15°

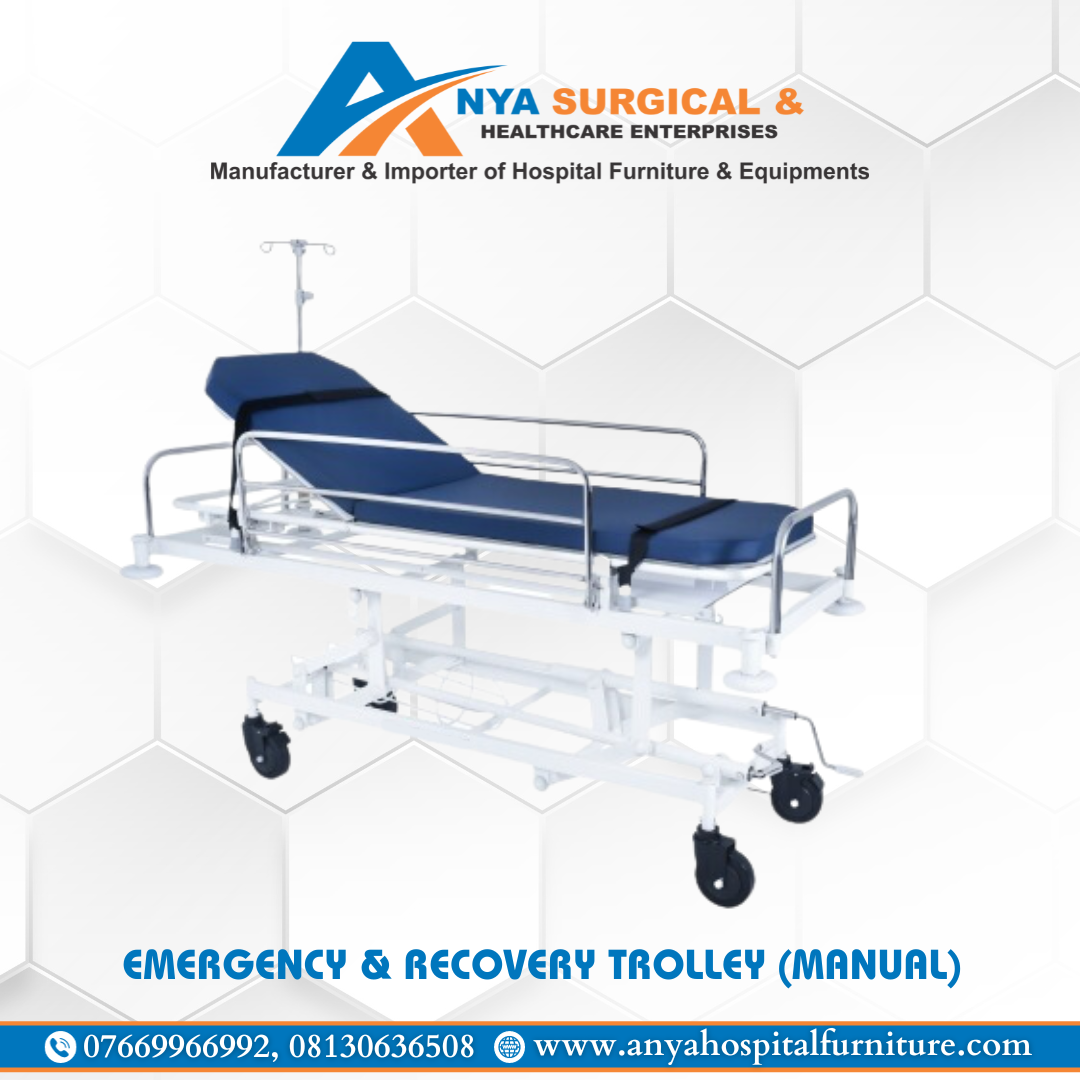

Emergency & Recovery Trolley (manual)

Description

• Tubular M.S. Framework
• Positions Obtained by Separate Smooth Crank System with S.S. Foldable Handle: Hi – Low & Trendelenburg / Reverse Trendelenburg.
• Removable two section X-Ray permeable top with Head Raise on ratchet mechanism.
• Trolley Mounted on 125 mm (5”) diagonal locking castors.
• Provided with Oxygen Cylinder Cage, SS drop down Safety Side Railings, SS telescopic I.V. Rod with 4 Hooks, Utility Tray and Suitable Mattress of 50 mm (2”).
• Finish: Pretreated and Epoxy powder coated.

Dimensions (Approx.):
• Overall Size: 2220L x 700W x 600 – 810H mm
• Stretcher top Size: 1950L x 610W mm
• Backrest Angle: 75°
• Trendelenburg / Reverse Trendelenburg: 5°/ 9°

Stretcher Trolley 2 Section

Description

• Framework made of Tubular M.S. Pipe with S.S. handle.
• 2 Section Platform Top with Fixed 50mm (2”) Mattress.
• Trolley mount on 150 mm diagonal Locking castors.
• Swing Away Type Safety Side Railing in M.S.
• Provided with Adjustable S.S. I.V. Rod, Utility Tray, and Cylinder Cage.
• Finish: Pretreated and Epoxy powder coated.
• Stretcher Top Size (Handle to handle) : 2090L x 560W
• Overall Size: 2090L x 590W x 840H mm.

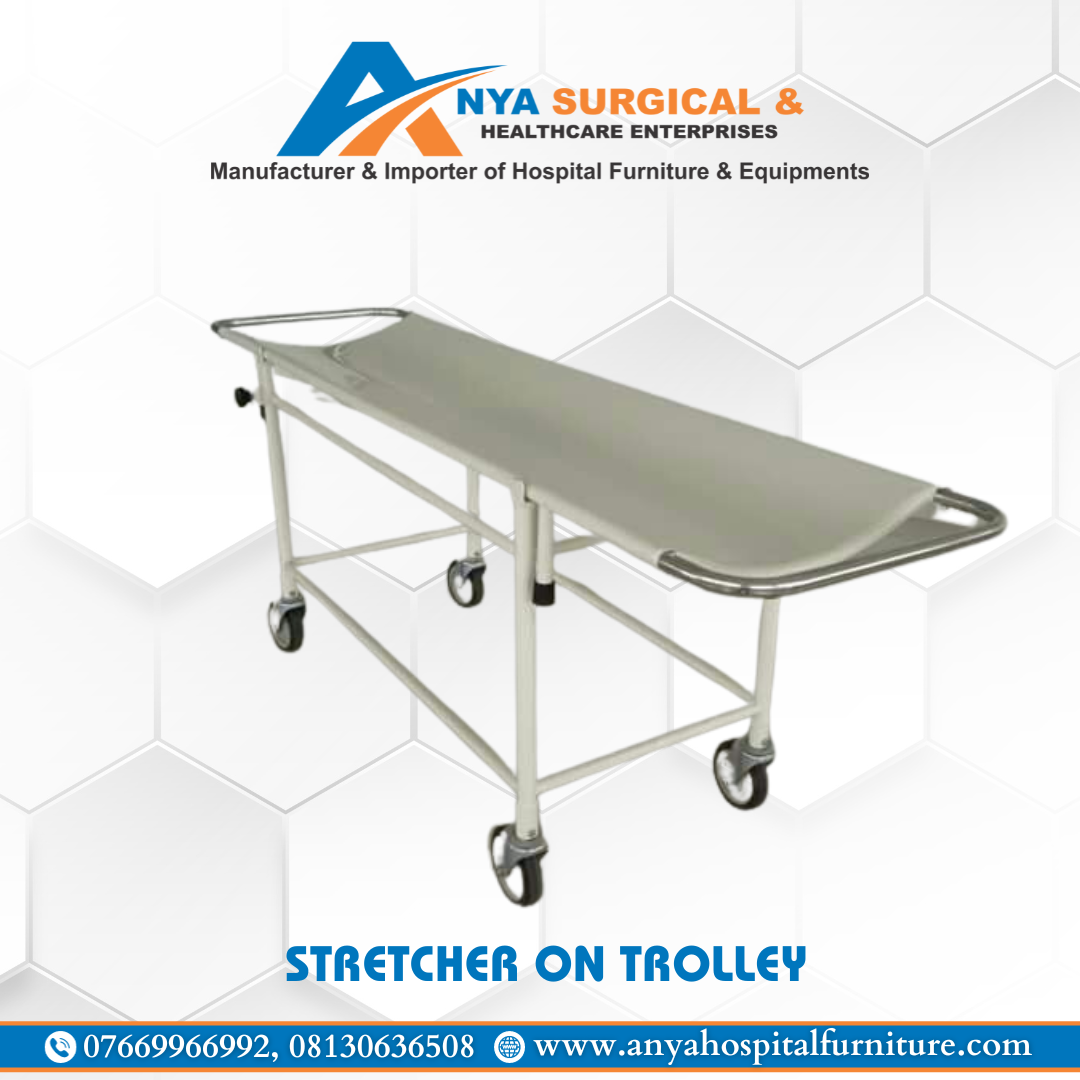

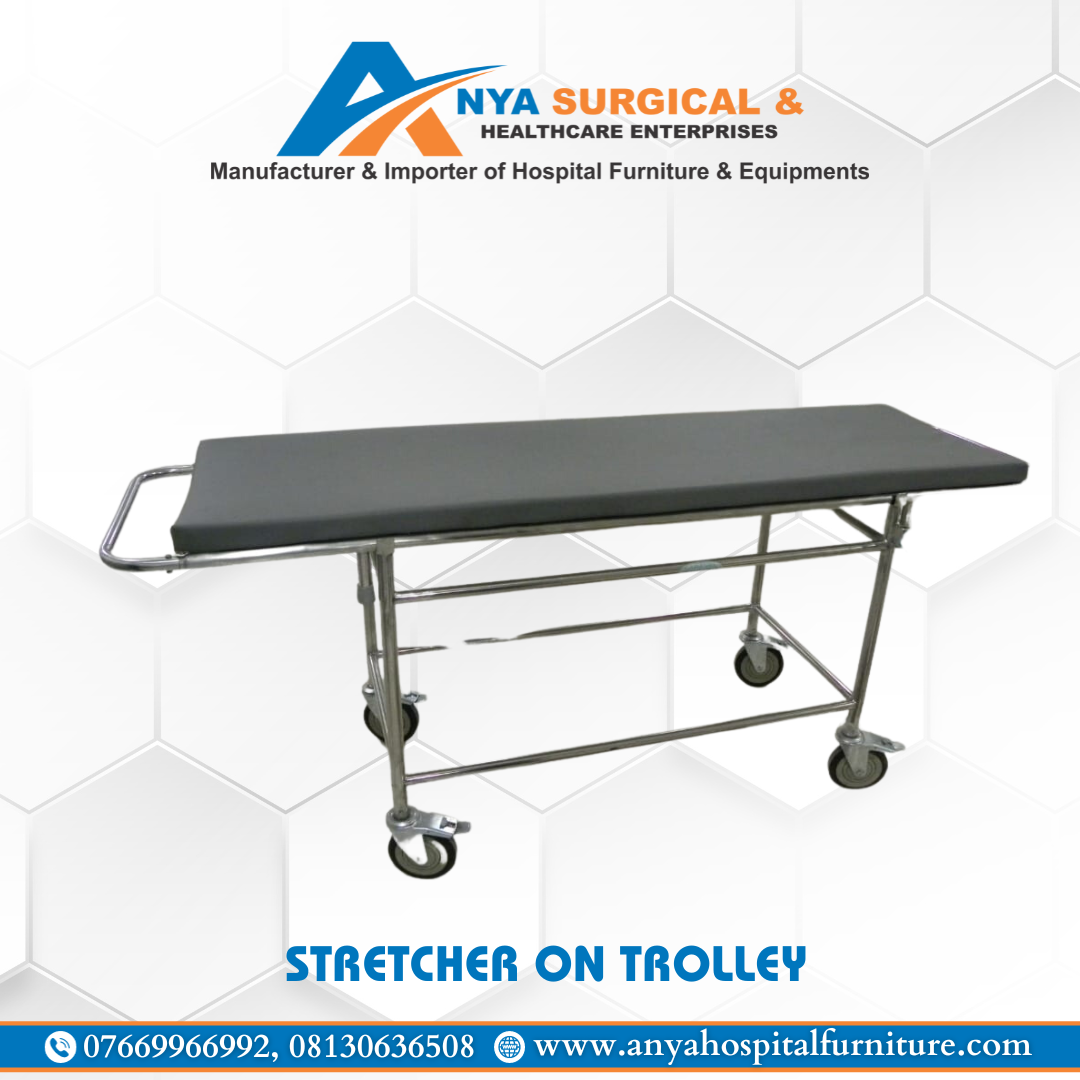

Stretcher on Trolley

Description

• Removable Stretcher top on CRCA, ERW tubular Steel trolley mounted on 150mm (6”) Diagonal Locking Castors.
• Framework made of 1.25” x 16G vertical and 1” x 18G horizontal CRC tubes.
• Suitable Mattress of 50 mm (2”), with Safety Belts.
• Finish: Pretreated and Epoxy powder coated.
• Stretcher Top Size (Handle to handle) : 2050L x 565W mm.
• Trolley Size: 1113L x 580W x 800H mm.

Optional Accessories:
• S.S. Telescopic I.V. Rod with 4 Hook’s
• Safety Side-Rails, Swing Away

Stretcher On Trolley

Description

• Removable Stretcher top on CRCA, ERW tubular Steel trolley mounted on 150mm (6”) Diagonal Locking Castors.
• Framework made of 1.25” x 16G vertical and 1” x 18G horizontal CRC tubes.
• Suitable Mattress of 50 mm (2”), with Safety Belts.
• Finish: SS (202/304).
• Stretcher Top Size (Handle to handle) : 2050L x 565W mm.
• Trolley Size: 1113L x 580W x 800H mm.

Optional Accessories:
• S.S. Telescopic I.V. Rod with 4 Hook’s
• Safety Side-Rails, Swing Away

Stretcher Luxurious

Description

• Smooth Pneumatic mechanism to raise Backrest.
• Hi – Low position obtained by Smooth Crank System with S.S. Foldable Handle at foot end.
• Framework made of mild steel mounted on 125mm (5”) Central Locking Castors
• Two Section PP Platform Top.
• PE engineering plastic moulded two Pieces individual Side Rails.
• Bottom Trolley fully M.S. covered
• Finish: Pretreated & Epoxy Powder Coated.
• Overall Size: 1920L x 680W x 530 – 820H mm.

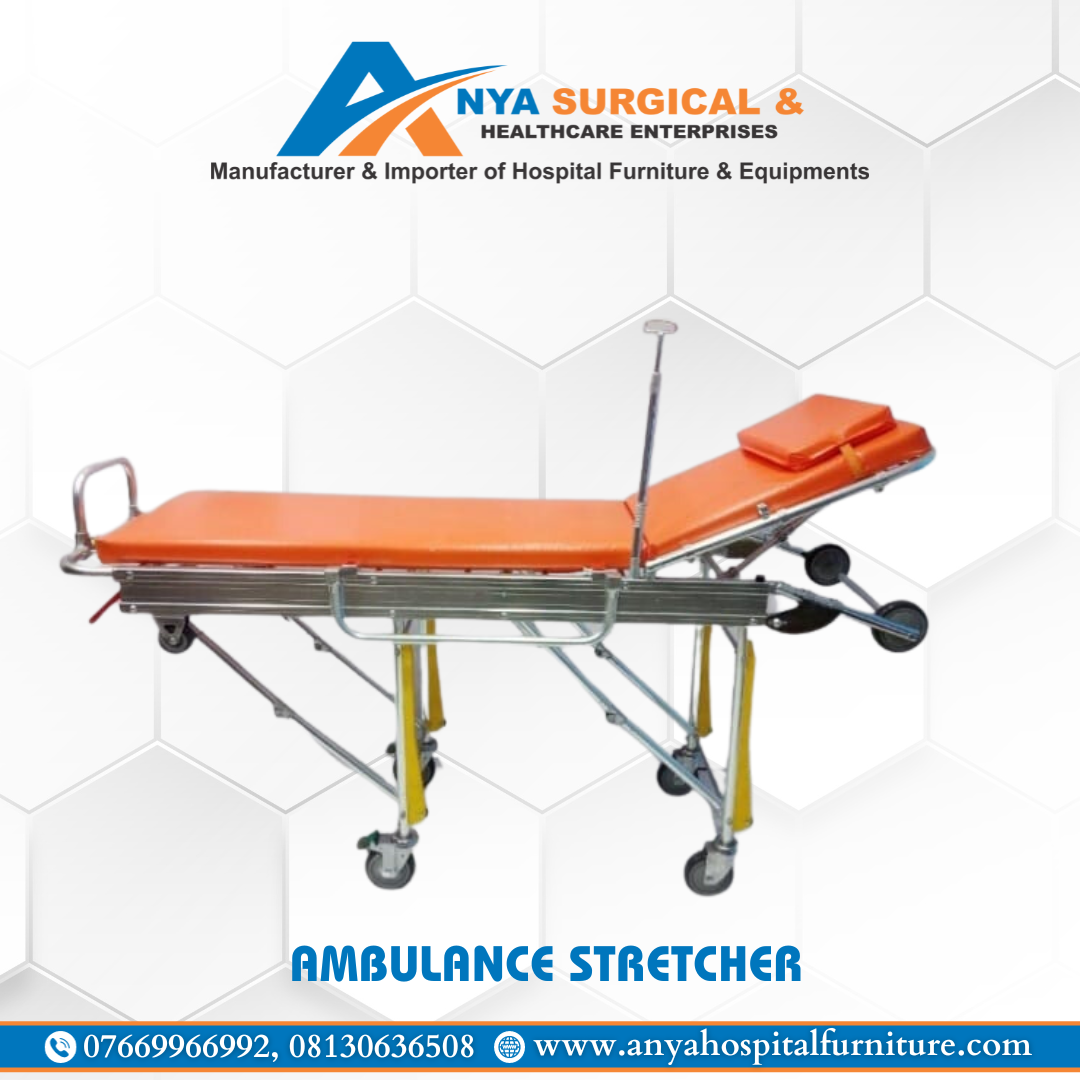

ambulance stretcher

Description

• Light weight, strong structure. Utilizes high precision mechanical transmission.
• Can be used automatically folded through the left and the right hand control handle.
• Made of high quality aluminum alloy tubes.
• Load weight >= 120 Kg. Product Weight-40Kg Diameter of the castors - 125mm.
• Applicable for various kind of Hospitals, emergency centers.
• Ambulances and battle fields

Size:
• High Position 1900 x 560 x 900 (LxWxH mm).
• Low Position: 1900 x 560 x 280 (LxWxH mm).

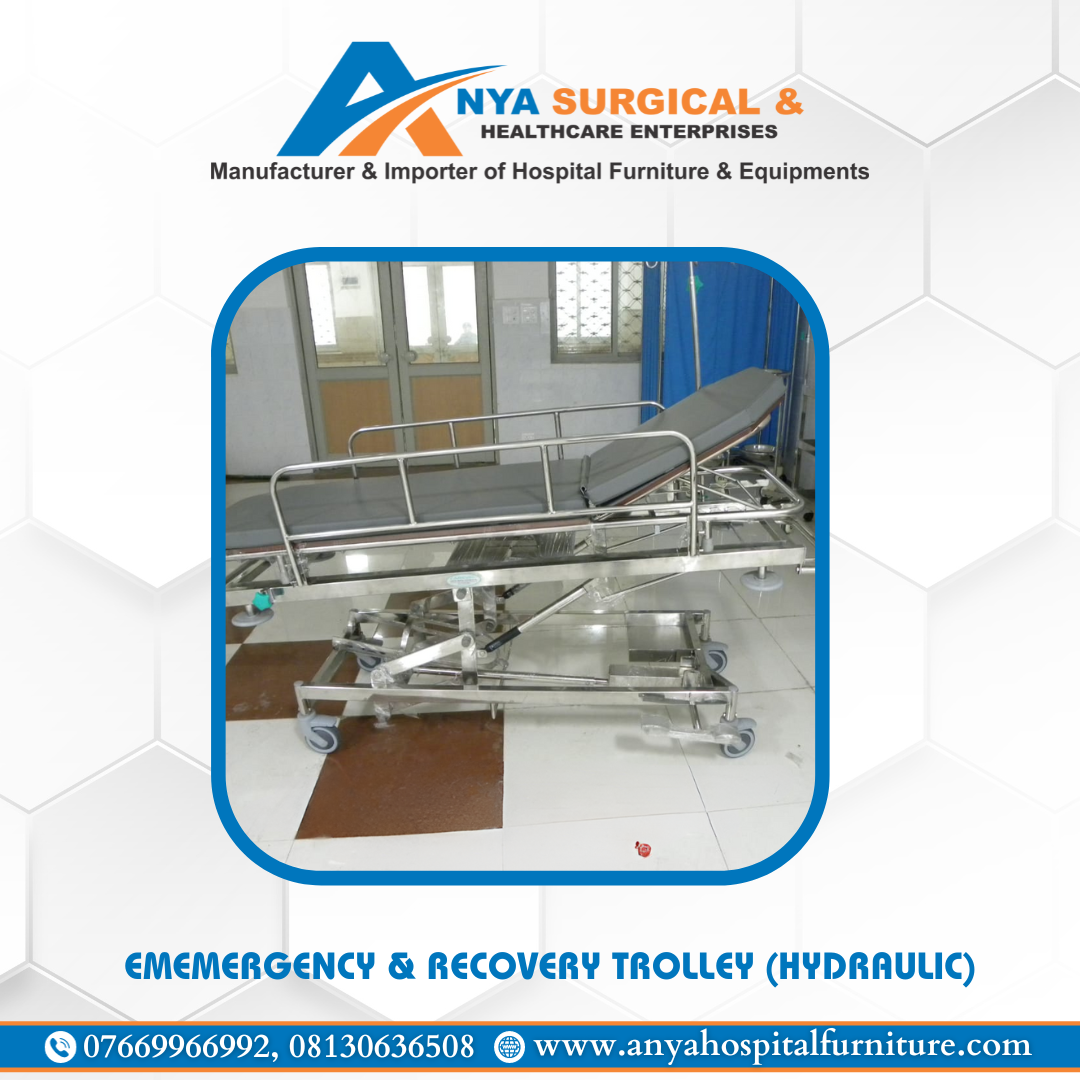

Emergency & Recovery Trolley (Hydraulic)

Description

• Tubular SS Framework, foot operated hydraulic pump for height adjustment.
• Smooth Pneumatic mechanism to obtain Trendelenburg and Reverse Trendelenburg positions.
• Removable two section X-Ray permeable top with Head Raise on Ratchet Mechanism.
• Trolley Mounted on 125 mm (5”) diagonal locking castors.
• Provided with Oxygen Cylinder Cage, Sliding X-ray Cassette holder, SS drop down safety side railings, SS telescopic I.V. Rod with 4 hooks, Utility Tray and Suitable Mattress of 50 mm (2”).
• Finish: SS 202/304.

Dimensions (Approx.):
• Overall Size: 2100L x 670W x 690 – 950H mm.
• Stretcher top Size: 1940L x 605W mm
• Angle of Back Section: 70°
• Angle of Trendelenburg / Reverse Trendelenburg: 9°/ 15°

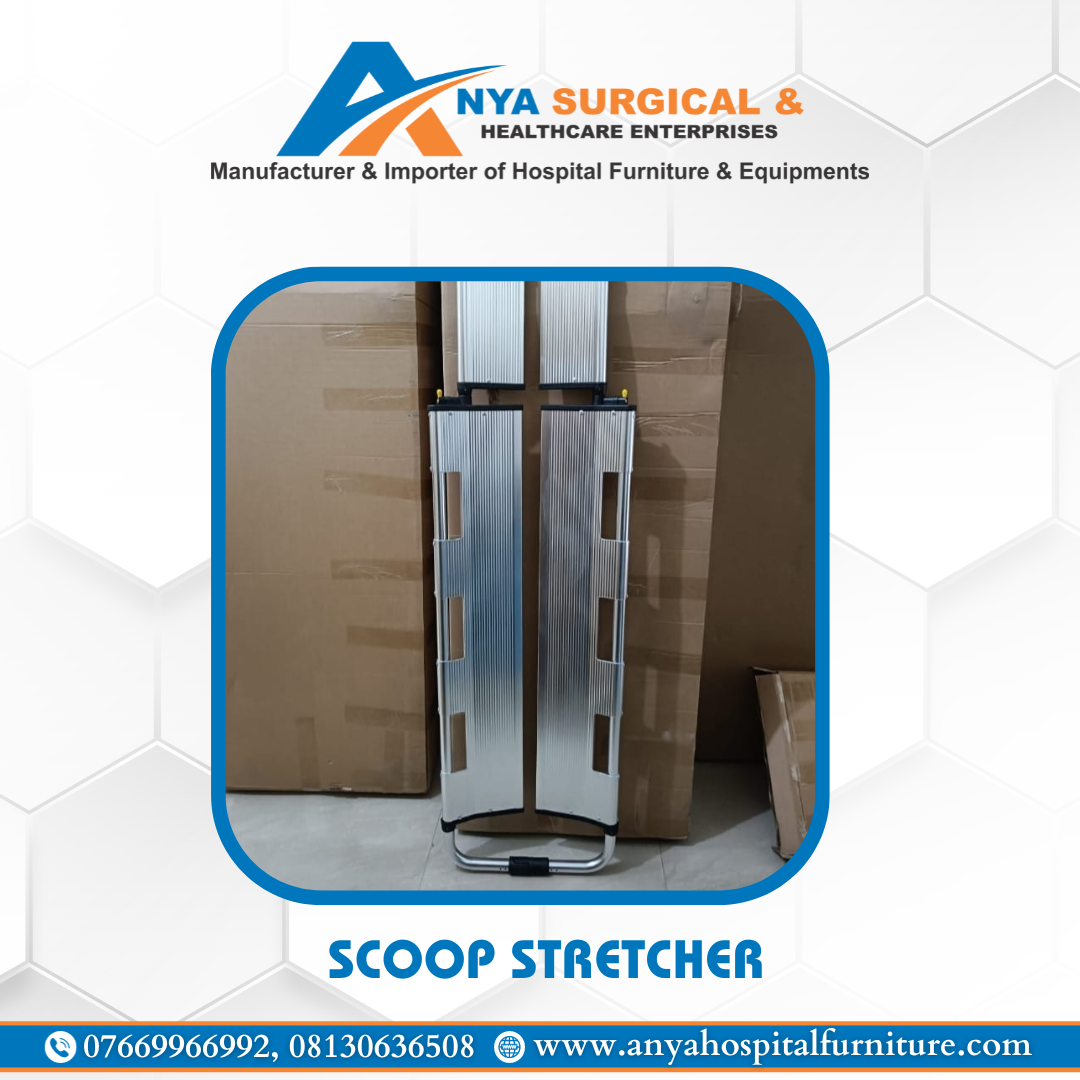

Scoop Stretcher

Description

• Telescopic Handles.
• Light Weight, Approx. 9kgs.
• Weight Capacity >159kgs.
• Made of High Strength Aluminum Alloy Material.
• Detachable design to transfer fractured and serious patients.
• Length can be adjusted according to the patient’s height.
• Portable and Compact.
• Product Size: 210 x 44 x 6cm.
• Folding Size 120 x 44 x 9cm.

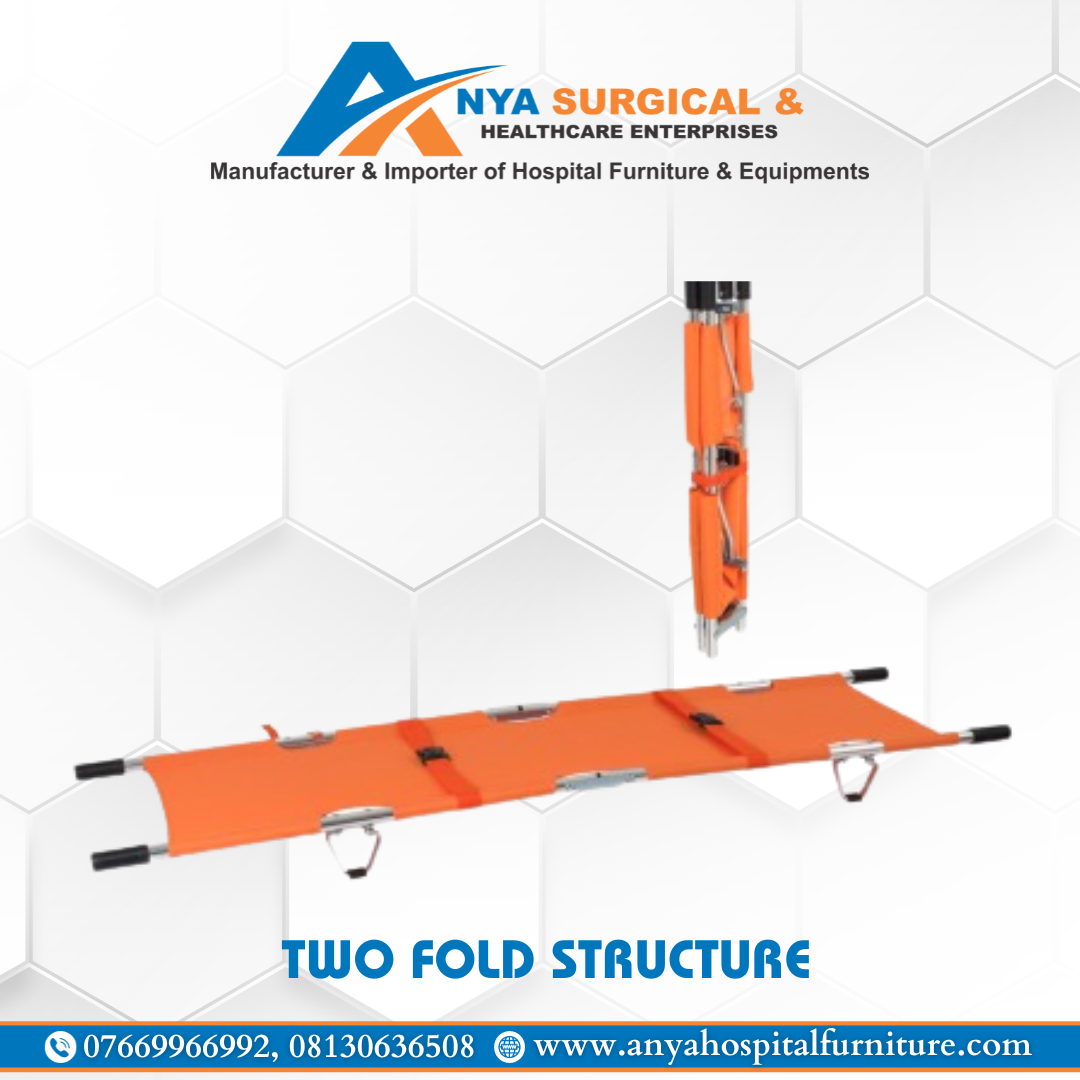

Two Fold Structure

Description

• Two-Fold Structure.
• Aluminum Tubes: Approx. Dia. 30 x 1.5mm.
• Carrying Capacity: Approx. 150Kg.
• washable Teflon cloth & carrying bag.
• Size: 2000(L) x 550(W) x 150(H) mm.

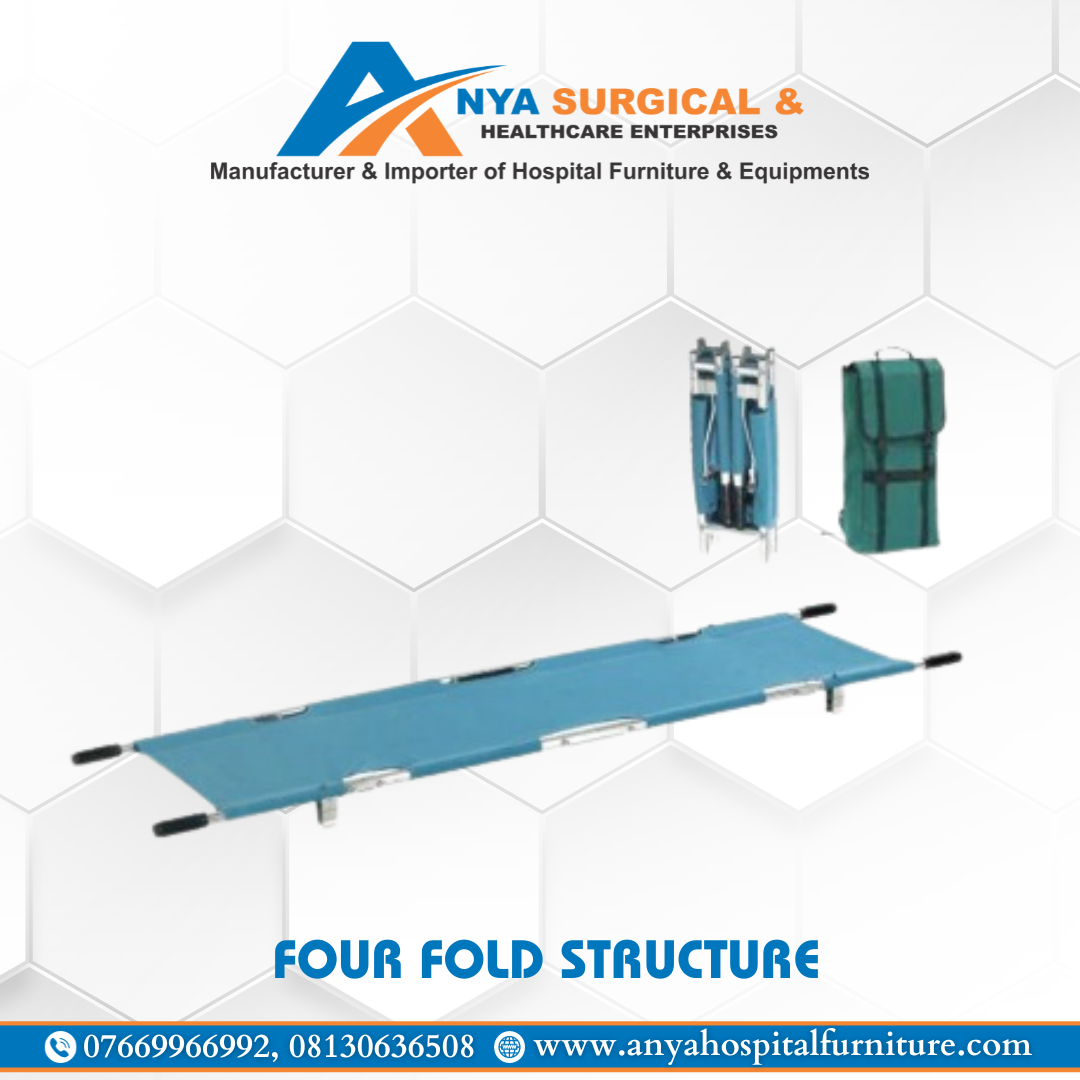

Four Fold Structure

Description

• Four-Fold Structure.
• Aluminum Tubes: Approx. Dia. 30 x 1.5mm.
• Carrying Capacity: Approx. 150Kg.
• washable Teflon cloth & carrying bag.
• Size: 2000(L) x 550(W) x 150(H) mm.
