labour/delivery table's

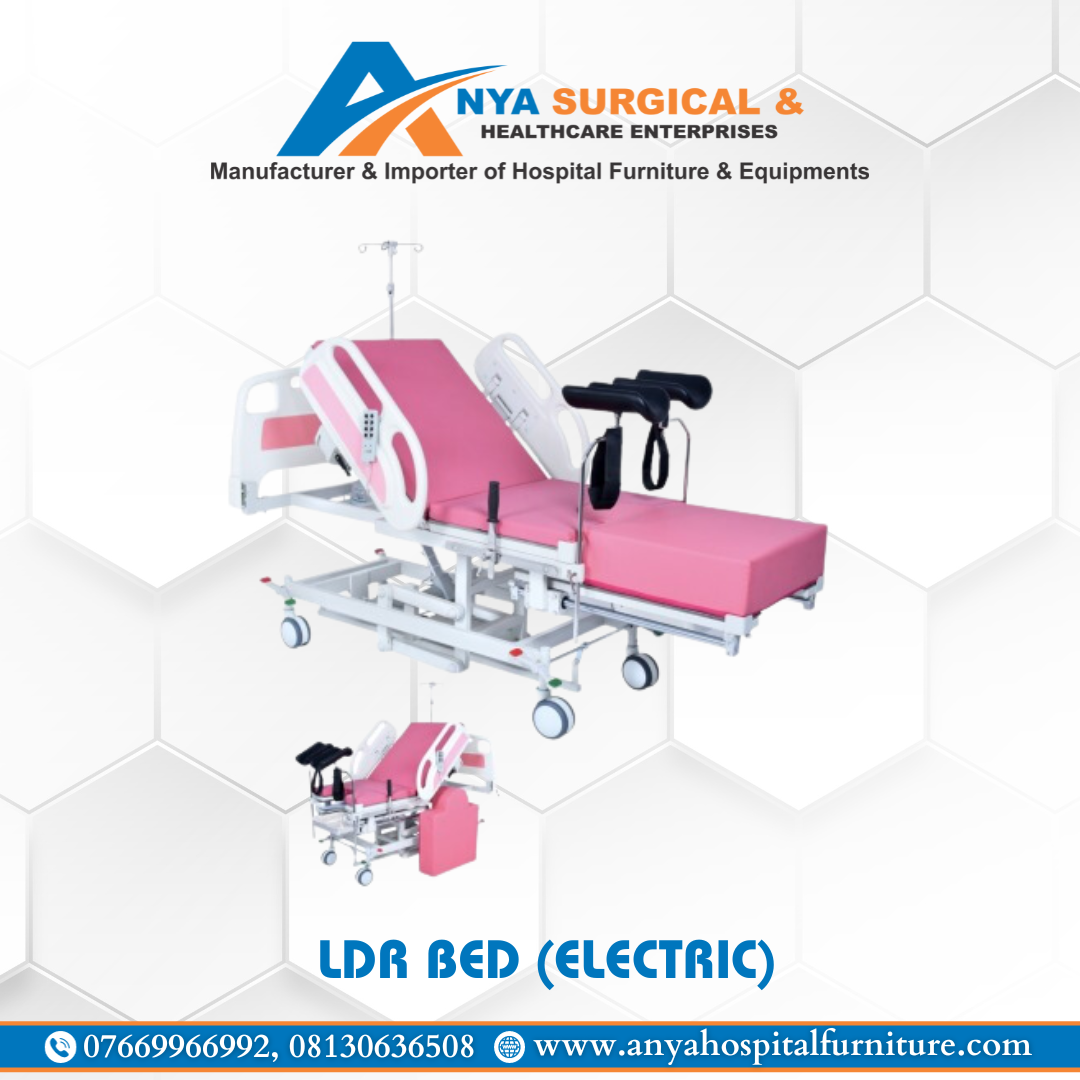

LDR BED (Electric)

Description

• Advance Liner actuator system with IP54 Liquid splash protection (03 pcs. Motor, 01 pcs. Control box, 01 pcs. Handset]
• PP Head Panels with metal inserts along with lock and corner buffer.
• PP Moulded Two Pieces individual Side Rails.
• Tubular framework mounted on 125mm (5”) Central locking castors.
• Three-section top made of Bakelite sheet covered with 3 section Removable suitable Mattress.
• Positions Obtained/Function’s by Patient Hand Remote: Backrest, Hi – Low, Trendelenburg & Reverse Trendelenburg.
• Leg end section can slide under the main section.
• Height adjustable a pair of foam padded knee crutches.
• S.S Telescopic I.V. Rod with 4 hooks
• Detachable S.S. Tray
• Provided with adjustable S.S. Grip Handles on both sides.
• Finish: Pretreated and epoxy powder coated.

Dimensions (Approx.):
• Overall Size: 2000L x 950W mm
• Platform Size (full extended): 1900L x 660W
• Platform Size (Leg section Slide under):1360L x 660W
• Minimum Height (without Mattress): 680mm
• Maximum Height (without Mattress): 960mm
• Backrest angle: 60°
• TB / RTB: 9° / 12°

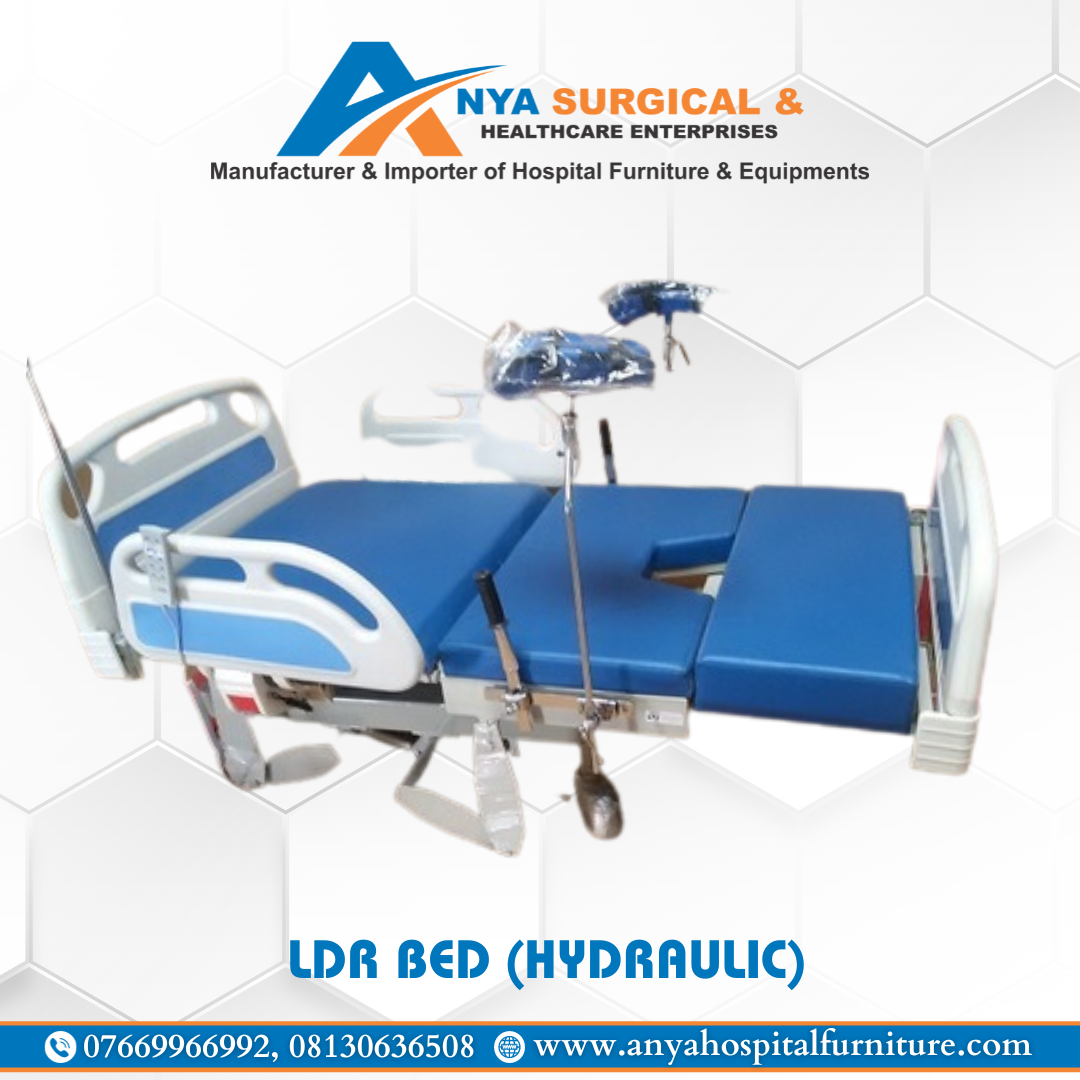

LDR BED (Hydraulic)

Description

• Foot operated Hydraulic System mechanism by stepping on the pedal located on either side of the table for Hi – Low adjustment.
• Backrest, Trendelenburg & Reverse Trendelenburg position Obtained by Smooth Crank System with S.S. Foldable Handle behind head end.
• Heavy PP Head Panel with metal inserts along with lock and corner buffer.
• PP Moulded two Pieces individual Side Rails.
• Tubular framework mounted on 125mm (5”) Central locking castors.
• Three-section top made of Bakelite sheet covered with Removable suitable Mattress.
• Leg end section can slide under the main section.
• Height adjustable a pair of foam padded knee crutches.
• S.S Telescopic I.V. Rod with 4 hooks
• Detachable S.S. Tray
• Provided with adjustable S.S. Grip Handles on both sides.
• Finish: Pretreated and epoxy powder coated.

Dimensions (Approx.):
• Overall Size: 2000L x 950W mm
• Platform Size (full extended): 1900L x 660W
• Platform Size (Leg section Slide under): 360L x 660W
• Minimum Height (without Mattress): 670mm
• Maximum Height (without Mattress): 920mm
• Backrest angle: 50°

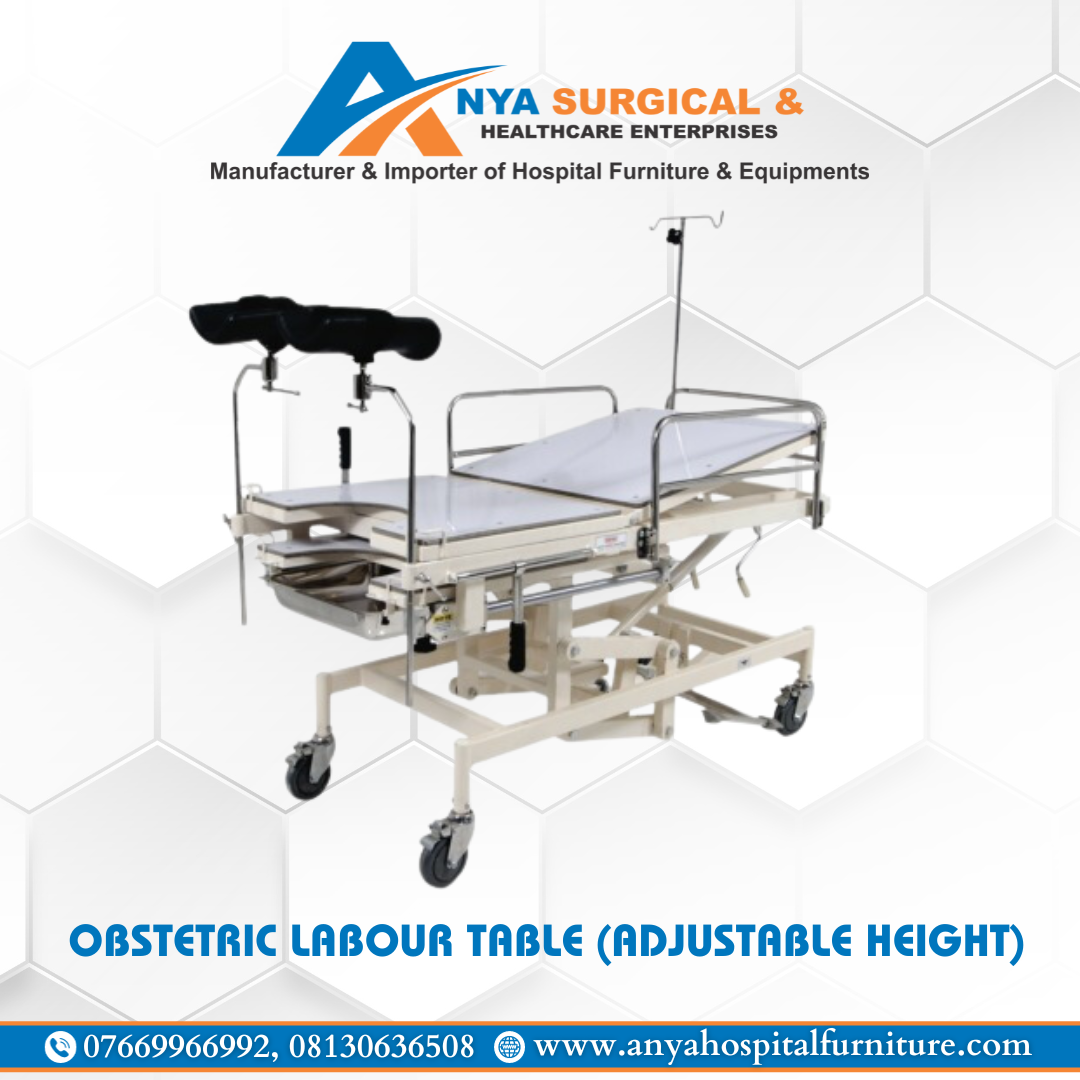

OBSTETRIC LABOUR TABLE (Adjustable Height)

Description

• Foot operated Hydraulic System mechanism by stepping on the pedal located on either side of the table for Hi – Low adjustment.
• Backrest, Trendelenburg & Reverse Trendelenburg position Obtained by Smooth Crank System with S.S. Foldable Handle behind head end.
• Stainless steel Swing away type Head Panel along with safety side Rails.
• Tubular framework mounted on 125mm (5”) Castors(all with Lock).
• Three-section top made of Bakelite sheet covered with Removable suitable Mattress.
• Leg end section can slide under the main section.
• Height adjustable a pair of foam padded knee crutches.
• S Telescopic I.V. Rod with 4 hooks
• Detachable S.S. Tray
• Provided with adjustable S.S. Grip Handles on both sides.
• Finish: Pretreated and epoxy powder coated.

Dimensions
• Overall Size: 1900L x 900W mm
• Platform Size (full extended): 1800L x 660W mm
• Platform Size (Leg section Slide under): 1260L x 660W mm
• Minimum Height (without Mattress): 670 mm
• Maximum Height (without Mattress): 920 mm
• Backrest angle: 50°
• TB / RTB: 9° / 12°

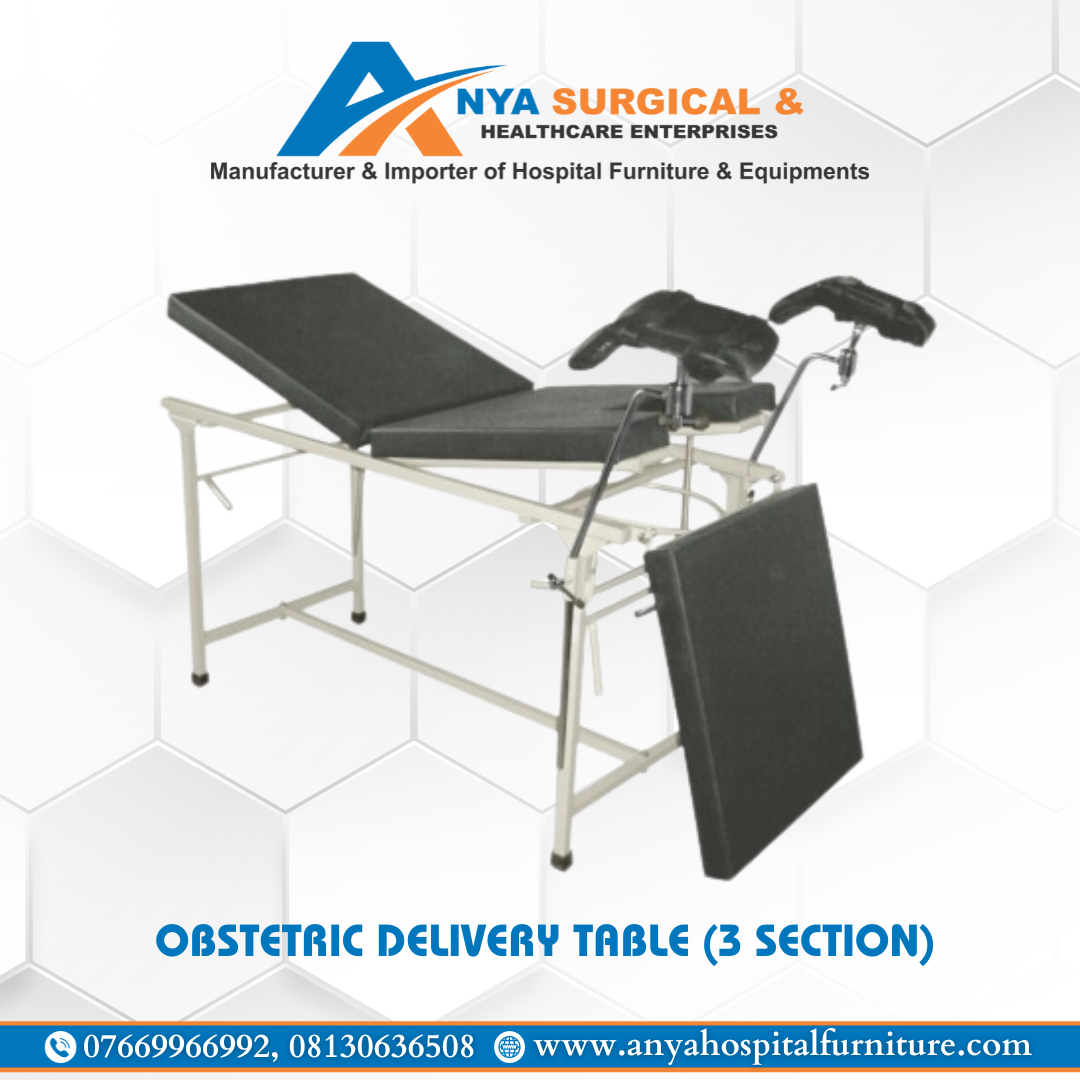

OBSTETRIC DELIVERY TABLE (3 section)

Description

• Rectangular & square tube frame work mounted on PVC stumps
• Three sections fixed cushioned top
• Backrest, Seat & Leg section adjustable by hand lever
• Provided with SS bowls
• Height adjustable a pair of knee crutches.
• Knockdown construction.
• Finish: Pre treated & Epoxy Powder Coated.
• Overall Size (Approx.): 1800L x 555W x 760H mm

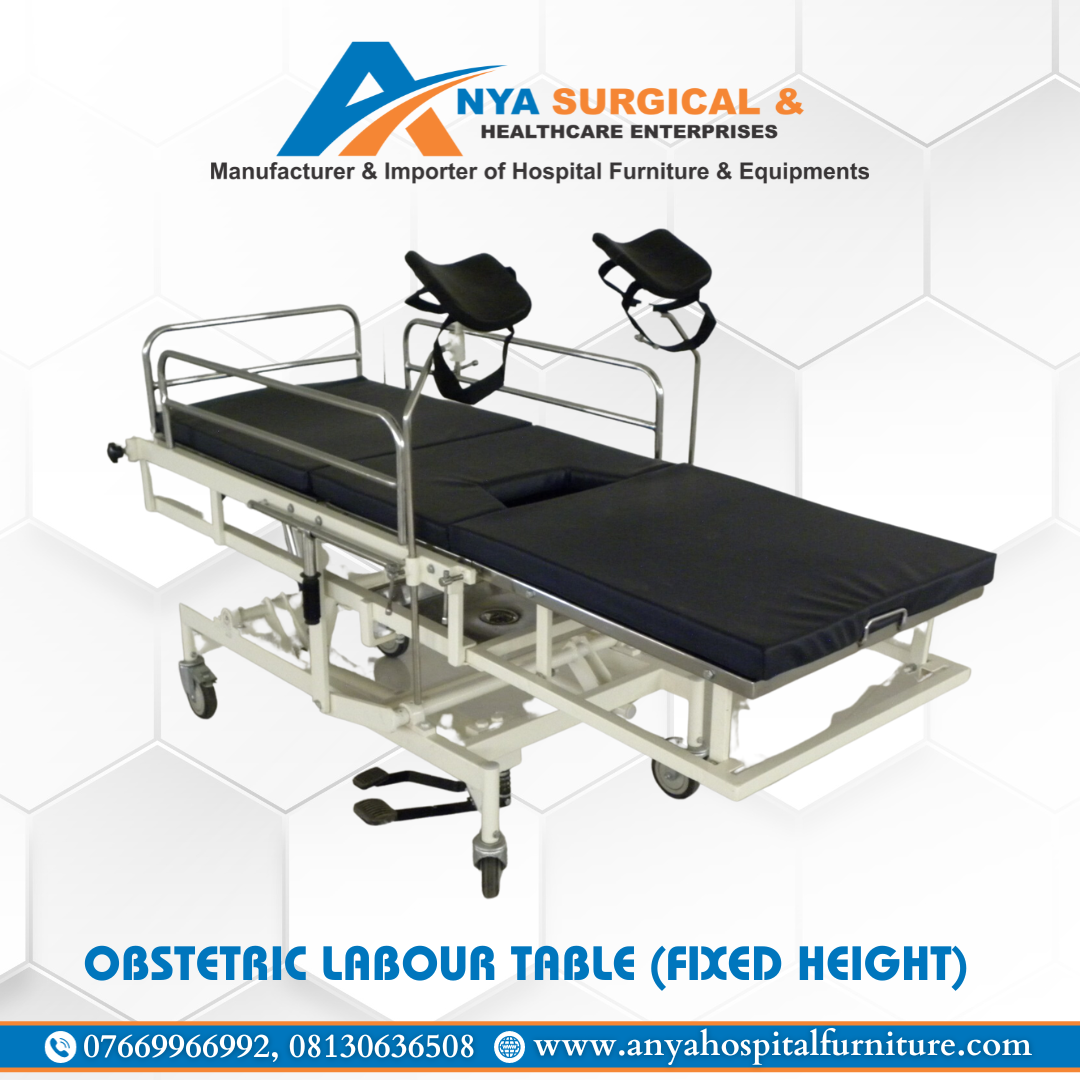

OBSTETRIC LABOUR TABLE (Fixed Height)

Description

• Foot operated Hydraulic System mechanism by stepping on the pedal located on either side of the table for Hi – Low adjustment.
• Backrest, Trendelenburg & Reverse Trendelenburg position Obtained by Smooth Crank System with S.S. Foldable Handle behind head end.
• Stainless steel Swing away type Head Panel along with safety side Rails.
• Provided with adjustable S.S. Grip Handles on both sides.

Dimensions
• Overall Size: 1900L x 900W mm
• Platform Size (full extended): 1800L x 660W mm
• Platform Size (Leg section Slide under): 1260L x 660W mm
• Minimum Height (without Mattress): 670 mm
• Maximum Height (without Mattress): 920 mm
• Backrest angle: 50°
• TB / RTB: 9° / 12°

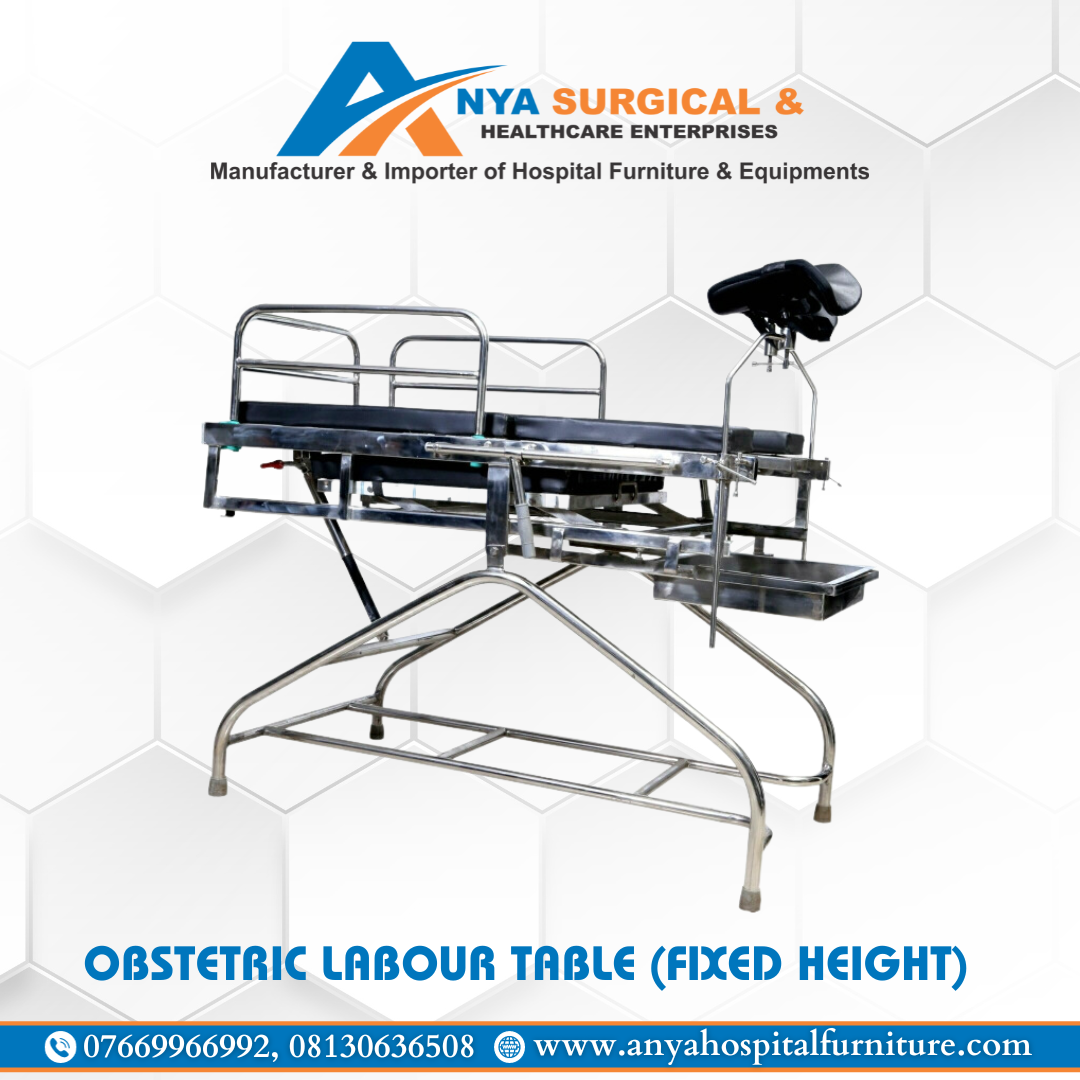

OBSTETRIC LABOUR TABLE (Fixed Height)

Description

• Foot operated Hydraulic System mechanism by stepping on the pedal located on either side of the table for Hi – Low adjustment.
• Backrest, Trendelenburg & Reverse Trendelenburg position Obtained by Smooth Crank System with S.S. Foldable Handle behind head end.
• Stainless steel Swing away type Head Panel along with safety side Rails.
• Provided with adjustable M.S. Grip Handles on both sides.

Dimensions
• Overall Size: 1900L x 900W mm
• Platform Size (full extended): 1800L x 660W mm
• Platform Size (Leg section Slide under): 1260L x 660W mm
• Minimum Height (without Mattress): 670 mm
• Maximum Height (without Mattress): 920 mm
• Backrest angle: 50°
• TB / RTB: 9° / 12°

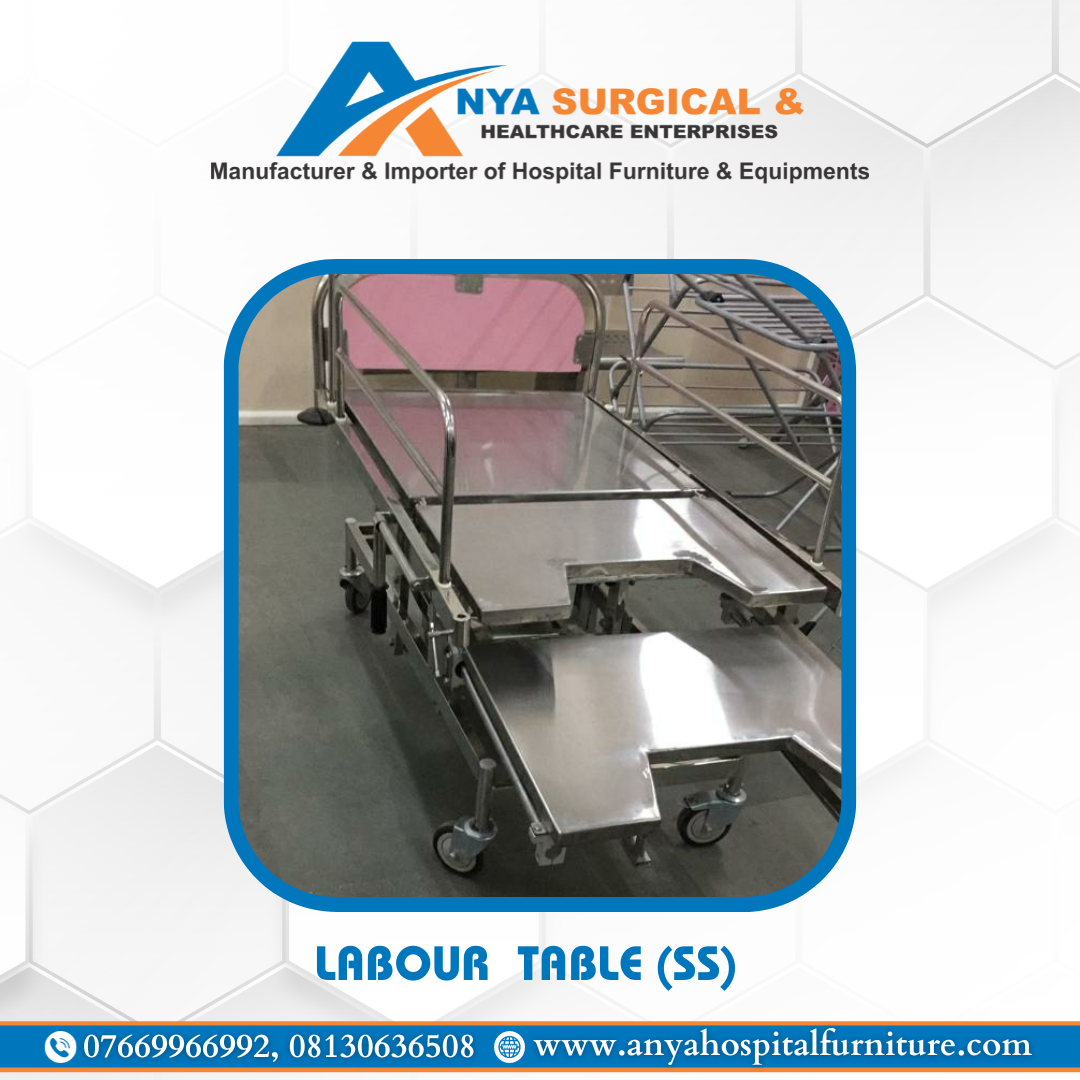

Labour table (SS)

Description

Features
• Stainless Steel top in 3 sections
• Trendelenburg positions adjustable by Screw/pneumatic gas spring system
• Leg end section can slide under the main section
• Overall Dimension: - 1800*675*750 mm
• Number Of Wheels: - 4
• Height Adjustable: -Both Knee, Crutches, Adjustable
• Materials: - SS 202/ SS 304
